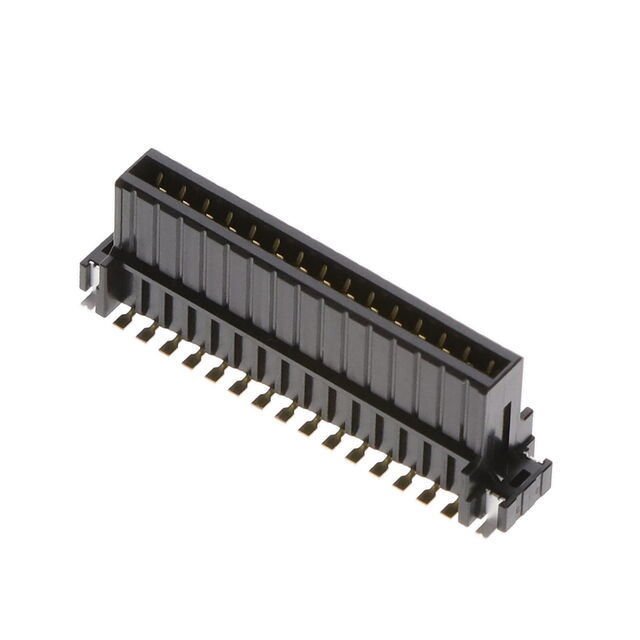

IMSA-10120S-30Z14-GFN4

Active

IRISO USA Inc.

CONN SOCKET VERT B-TO-B FLOATING

Search across all available documentation for this part.

Active

IRISO USA Inc.

CONN SOCKET VERT B-TO-B FLOATING

Technical Specifications

Parameters and characteristics for this part

Specification	IMSA-10120S-30Z14-GFN4

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention, Board Guide
Height Above Board [z]	12.35 mm
Height Above Board [z]	0.486 "
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm

Part	Mounting Type	Number of Rows	Height Above Board	Height Above Board	Features	Connector Type	Pitch [x]	Pitch [x]	Number of Positions	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]
IRISO USA Inc. IMSA-10120S-06Z10-GFN4	Surface Mount	2	0.329 in	8.35 mm	Board Guide Solder Retention	Socket Center Strip Contacts	0.079 in	2 mm	6
IRISO USA Inc. IMSA-10120B-30Z04-GFN4	Surface Mount	2	0.352 in	8.95 mm	Board Guide Solder Retention		0.079 in	2 mm	30	Gold	4 Áin	0.1 Ám
IRISO USA Inc. IMSA-10126B-30H-GFN4	Surface Mount	2			Solder Retention		0.016 in	0.4 mm	30	Gold
IRISO USA Inc. IMSA-10120B-06Y913	Surface Mount	2	0.352 in	8.95 mm	Board Guide Solder Retention		0.079 in	2 mm	6	Gold	4 Áin	0.1 Ám
IRISO USA Inc. IMSA-10120B-20Z04-GFN4	Surface Mount	2	0.352 in	8.95 mm	Board Guide Solder Retention		0.079 in	2 mm	20	Gold	4 Áin	0.1 Ám
IRISO USA Inc. IMSA-10120S-06Z18-GFN4	Surface Mount	2	0.644 in	16.35 mm	Board Guide Solder Retention	Socket Center Strip Contacts	0.079 in	2 mm	6	Gold	4 Áin	0.1 Ám
IRISO USA Inc. IMSA-10120B-10Z02-GFN4	Surface Mount	2			Board Guide Solder Retention		0.079 in	2 mm	10	Gold	4 Áin	0.1 Ám	7.95 mm	0.313 in
IRISO USA Inc. IMSA-10120B-30Y913	Surface Mount	2	0.352 in	8.95 mm	Board Guide Solder Retention		0.079 in	2 mm	30	Gold	4 Áin	0.1 Ám
IRISO USA Inc. IMSA-10120B-06Z04-GFN4	Surface Mount	2	0.352 in	8.95 mm	Board Guide Solder Retention		0.079 in	2 mm	6	Gold	4 Áin	0.1 Ám
IRISO USA Inc. IMSA-10120S-30Z14-GFN4	Surface Mount	2			Board Guide Solder Retention	Socket Center Strip Contacts	0.079 in	2 mm	30	Gold	4 Áin	0.1 Ám	12.35 mm	0.486 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 Position Connector Socket, Center Strip Contacts Surface Mount Gold
