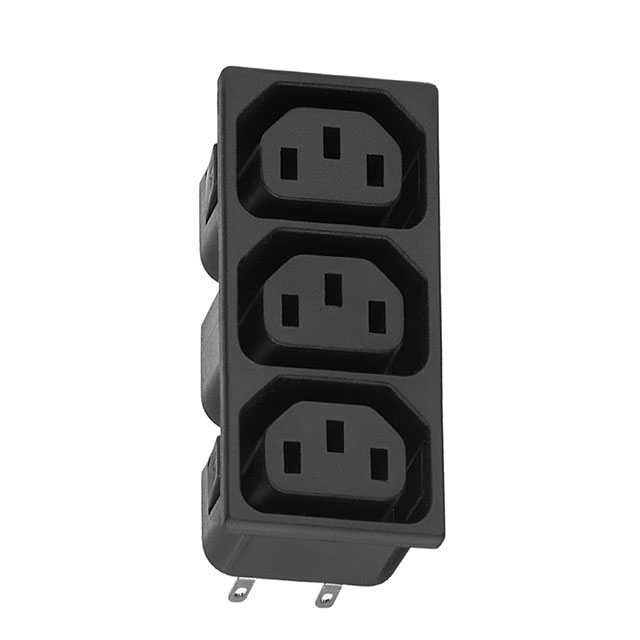

44R02-3121-150

Active

Power Dynamics, Inc.

PWR ENT RCPT IEC320-C13 PNL SLDR

Search across all available documentation for this part.

Active

Power Dynamics, Inc.

PWR ENT RCPT IEC320-C13 PNL SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	44R02-3121-150

Accomodates a Fuse	False
Approval Agency	cULus, VDE
Connector Style	IEC 320-C13
Connector Type	Receptacle, Female Sockets
Filter Type	Unfiltered - Commercial
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Number of Positions	3 per connection (3)
Panel Cutout Dimensions [x]	72.2 mm
Panel Cutout Dimensions [y]	32.5 mm
Panel Thickness [custom]	0.059 in
Panel Thickness [custom]	1.5 mm
Termination	Solder Eyelet

Part	Mounting Type	Termination	Material Flammability Rating	Connector Type	Connector Style	Number of Positions	Number of Positions	Approval Agency	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Filter Type	Panel Thickness [custom]	Panel Thickness [custom]
Power Dynamics, Inc. 44R02-5121-250	Panel Mount Snap-In	Solder	UL94 V-0	Receptacle Male Blades - Module	IEC 320-C13	5	3 per connection	cUL UL VDE	123.2 mm	35 mm
Power Dynamics, Inc. 44R02-4121-150	Panel Mount Snap-In	Solder	UL94 V-0	Receptacle Male Blades - Module	IEC 320-C13		3 per connection (4)	cUL UL VDE	99.6 mm	35 mm
Power Dynamics, Inc. 44R02-3121-150	Panel Mount Snap-In	Solder Eyelet	UL94 V-0	Receptacle Female Sockets	IEC 320-C13		3 per connection (3)	cULus VDE	72.2 mm	32.5 mm	Unfiltered - Commercial	0.059 in	1.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Female Sockets IEC 320-C13 Panel Mount, Snap-In
