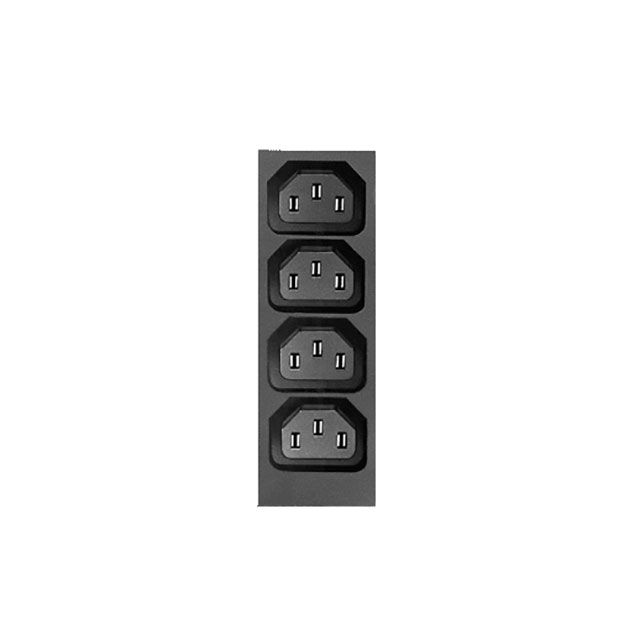

44R02-5121-250

Active

Power Dynamics, Inc.

PWR ENT MOD RCPT IEC320-C13 PNL

Search across all available documentation for this part.

Active

Power Dynamics, Inc.

PWR ENT MOD RCPT IEC320-C13 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	44R02-5121-250

Approval Agency	VDE, UL, cUL
Connector Style	IEC 320-C13
Connector Type	Receptacle, Male Blades - Module
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Number of Positions	5
Number of Positions	3 per connection
Panel Cutout Dimensions [x]	123.2 mm
Panel Cutout Dimensions [y]	35 mm
Termination	Solder

Part	Mounting Type	Termination	Material Flammability Rating	Connector Type	Connector Style	Number of Positions	Number of Positions	Approval Agency	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Filter Type	Panel Thickness [custom]	Panel Thickness [custom]
Power Dynamics, Inc. 44R02-5121-250	Panel Mount Snap-In	Solder	UL94 V-0	Receptacle Male Blades - Module	IEC 320-C13	5	3 per connection	cUL UL VDE	123.2 mm	35 mm
Power Dynamics, Inc. 44R02-4121-150	Panel Mount Snap-In	Solder	UL94 V-0	Receptacle Male Blades - Module	IEC 320-C13		3 per connection (4)	cUL UL VDE	99.6 mm	35 mm
Power Dynamics, Inc. 44R02-3121-150	Panel Mount Snap-In	Solder Eyelet	UL94 V-0	Receptacle Female Sockets	IEC 320-C13		3 per connection (3)	cULus VDE	72.2 mm	32.5 mm	Unfiltered - Commercial	0.059 in	1.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C13 Panel Mount, Snap-In
