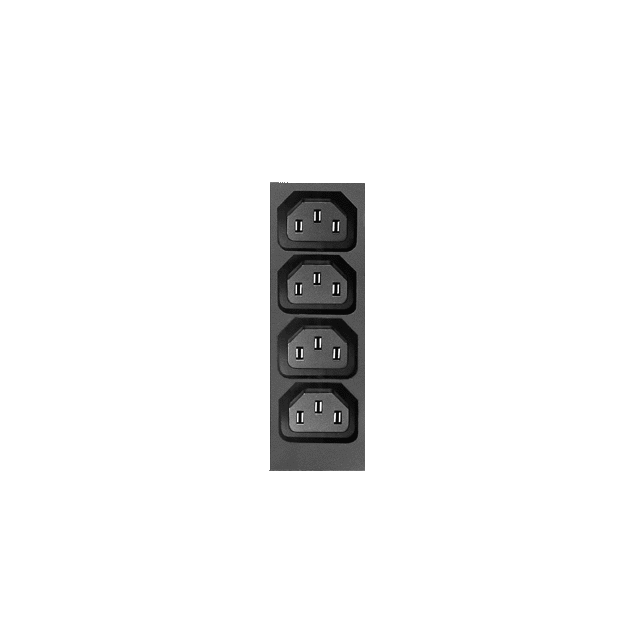

44R02-4121-150

Active

Power Dynamics, Inc.

PWR ENT MOD RCPT IEC320-C13 PNL

Search across all available documentation for this part.

Active

Power Dynamics, Inc.

PWR ENT MOD RCPT IEC320-C13 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	44R02-4121-150

Approval Agency	VDE, UL, cUL
Connector Style	IEC 320-C13
Connector Type	Receptacle, Male Blades - Module
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Number of Positions	3 per connection (4)
Panel Cutout Dimensions [x]	99.6 mm
Panel Cutout Dimensions [y]	35 mm
Termination	Solder

Part	Mounting Type	Termination	Material Flammability Rating	Connector Type	Connector Style	Number of Positions	Number of Positions	Approval Agency	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Filter Type	Panel Thickness [custom]	Panel Thickness [custom]
Power Dynamics, Inc. 44R02-5121-250	Panel Mount Snap-In	Solder	UL94 V-0	Receptacle Male Blades - Module	IEC 320-C13	5	3 per connection	cUL UL VDE	123.2 mm	35 mm
Power Dynamics, Inc. 44R02-4121-150	Panel Mount Snap-In	Solder	UL94 V-0	Receptacle Male Blades - Module	IEC 320-C13		3 per connection (4)	cUL UL VDE	99.6 mm	35 mm
Power Dynamics, Inc. 44R02-3121-150	Panel Mount Snap-In	Solder Eyelet	UL94 V-0	Receptacle Female Sockets	IEC 320-C13		3 per connection (3)	cULus VDE	72.2 mm	32.5 mm	Unfiltered - Commercial	0.059 in	1.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C13 Panel Mount, Snap-In
