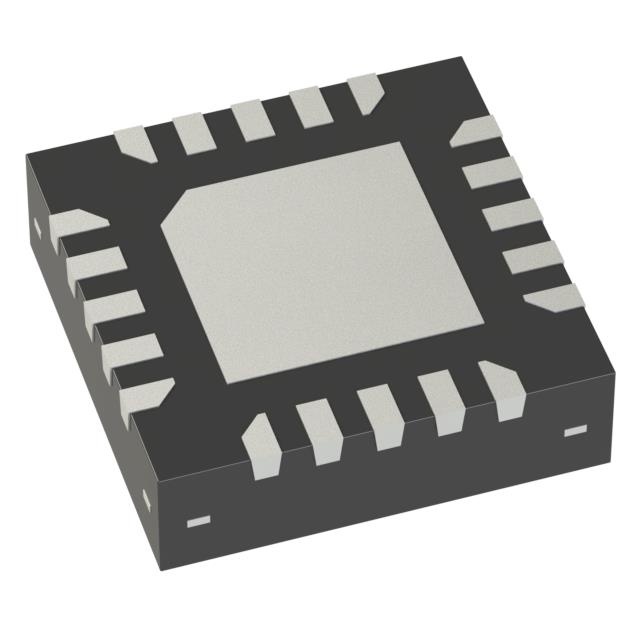

TMC2300-LA-T
ActiveAnalog Devices Inc./Maxim Integrated
LOW VOLTAGE MOTOR DRIVER 2-11V Q
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMC2300-LA-T
ActiveAnalog Devices Inc./Maxim Integrated
LOW VOLTAGE MOTOR DRIVER 2-11V Q
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMC2300-LA-T |
|---|---|
| Applications | Industrial, Automation Control, Medical |
| Current - Output | 1.2 A |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | UART, Step/Direction |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Step/Direction |
| Package / Case | 20-VFQFN Exposed Pad |
| Step Resolution [Max] | 1 |
| Step Resolution [Min] | 0.00390625 |
| Supplier Device Package | 20-QFN (3x3) |
| Technology | Power MOSFET |
| Voltage - Load [Max] | 1.95 V |
| Voltage - Load [Min] | 1.65 V |
| Voltage - Supply [Max] | 11 V |
| Voltage - Supply [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.89 | |
| 10 | $ 3.26 | |||
| 25 | $ 2.84 | |||
| 100 | $ 2.36 | |||
| 250 | $ 2.13 | |||
| 500 | $ 1.99 | |||
| 1000 | $ 1.87 | |||
| 2500 | $ 1.74 | |||
| Digi-Reel® | 1 | $ 4.89 | ||
| 10 | $ 3.26 | |||
| 25 | $ 2.84 | |||
| 100 | $ 2.36 | |||
| 250 | $ 2.13 | |||
| 500 | $ 1.99 | |||
| 1000 | $ 1.87 | |||
| 2500 | $ 1.74 | |||
| Tape & Reel (TR) | 5000 | $ 1.68 | ||
Description
General part information
TMC2300 Series
Motor Driver Power MOSFET Step/Direction, UART 20-QFN (3x3)
