TMC2300-EVAL-KIT

Active

Analog Devices Inc./Maxim Integrated

EVAL KIT FOR TMC2300

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

EVAL KIT FOR TMC2300

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Motor Type - Stepper	Package / Case	Output Configuration	Interface	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Load [Min]	Voltage - Load [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Technology	Motor Type - AC, DC	Function	Current - Output	Step Resolution [Max]	Step Resolution [Min]	Supplied Contents	Primary Attributes	Utilized IC / Part	Contents	Type	Embedded
Analog Devices Inc./Maxim Integrated TMC2300-LA	Automation Control Medical Printer	Bipolar	20-VFQFN Exposed Pad	Half Bridge (2) Half Bridge (4)	Step/Direction UART	-40 °C	125 ¯C	Surface Mount	2 V	11 V	11 V	2 V	20-QFN (3x3)	Power MOSFET	Brushed DC	Driver - Fully Integrated Control and Power Stage	1.2 A	1	0.00390625
Analog Devices Inc./Maxim Integrated TMC2300-BOB																				Board(s)	Motors (Stepper)	TMC2300	Board(s)	Power Management
Analog Devices Inc./Maxim Integrated TMC2300-EVAL-KIT																				Board(s)	Motors (Stepper)	TMC2300		Power Management	32-Bit MCU
Analog Devices Inc./Maxim Integrated TMC2300-LA-T	Automation Control Industrial Medical		20-VFQFN Exposed Pad	Step/Direction	Step/Direction UART	-40 °C	125 ¯C	Surface Mount	1.65 V	1.95 V	11 V	2 V	20-QFN (3x3)	Power MOSFET		Driver - Fully Integrated Control and Power Stage	1.2 A	1	0.00390625

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 133.24

General part information

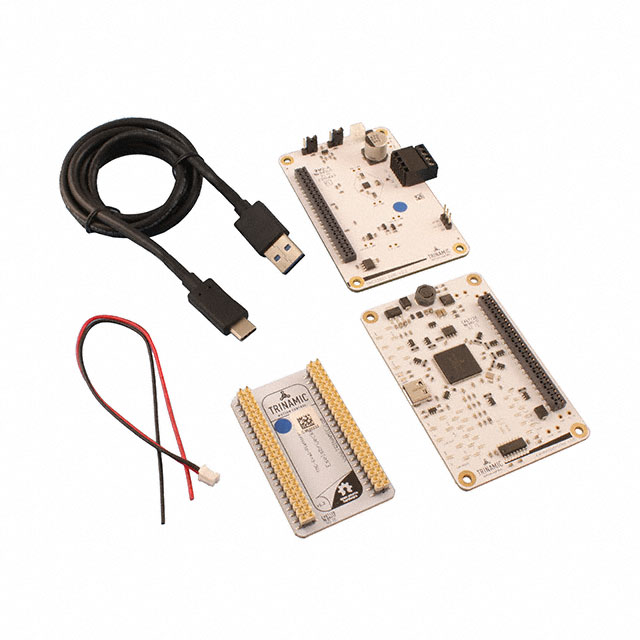

TMC2300 Motor Controller/Driver, Stepper Power Management Evaluation Board
