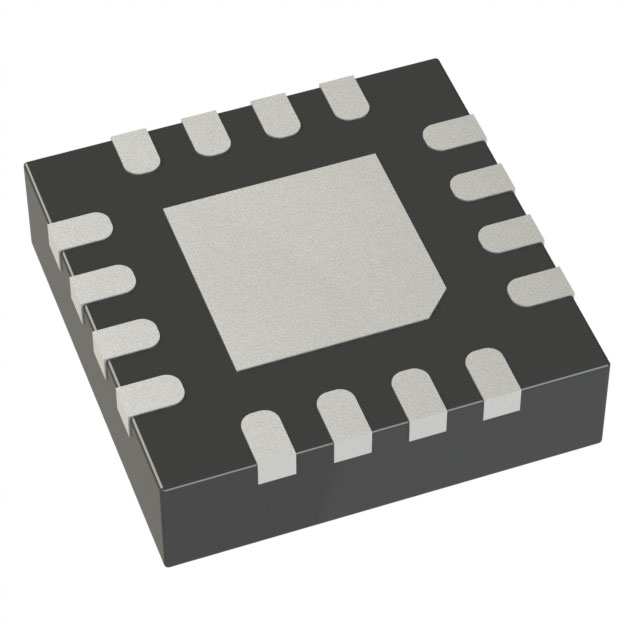

TMC2300-LA
ActiveAnalog Devices Inc./Maxim Integrated
LOW VOLTAGE STEPPER MOTOR DRIVER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMC2300-LA
ActiveAnalog Devices Inc./Maxim Integrated
LOW VOLTAGE STEPPER MOTOR DRIVER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMC2300-LA |
|---|---|
| Applications | Medical, Automation Control, Printer |
| Current - Output | 1.2 A |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | UART, Step/Direction |
| Motor Type - AC, DC | Brushed DC |
| Motor Type - Stepper | Bipolar |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Half Bridge (4), Half Bridge (2) |
| Package / Case | 20-VFQFN Exposed Pad |
| Step Resolution [Max] | 1 |
| Step Resolution [Min] | 0.00390625 |
| Supplier Device Package | 20-QFN (3x3) |
| Technology | Power MOSFET |
| Voltage - Load [Max] | 11 V |
| Voltage - Load [Min] | 2 V |
| Voltage - Supply [Max] | 11 V |
| Voltage - Supply [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.89 | |
| 10 | $ 3.26 | |||
| 25 | $ 2.84 | |||
| 80 | $ 2.42 | |||
| 230 | $ 2.15 | |||
| 440 | $ 2.01 | |||
| 945 | $ 1.88 | |||
| Tube | 1 | $ 3.60 | ||
| 10 | $ 3.23 | |||
| 25 | $ 3.05 | |||
| 100 | $ 2.65 | |||
| 490 | $ 2.25 | |||
| 980 | $ 1.90 | |||
| 2940 | $ 1.80 | |||
| 5390 | $ 1.74 | |||
Description
General part information
TMC2300 Series
Bipolar Motor Driver Power MOSFET Step/Direction, UART 20-QFN (3x3)
