HB15CKW01-5C-CB
ActiveSWITCH PUSH BUTTON ON (ON) SPDT ROUND BUTTON 0.1A 30VAC 30VDC MOMENTARY PANEL MOUNT SOLDER LUG
Deep-Dive with AI
Search across all available documentation for this part.
HB15CKW01-5C-CB
ActiveSWITCH PUSH BUTTON ON (ON) SPDT ROUND BUTTON 0.1A 30VAC 30VDC MOMENTARY PANEL MOUNT SOLDER LUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HB15CKW01-5C-CB |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPDT |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 100 mA |
| Electrical Life | 50000 Cycles |
| Illumination Type, Color | Red, LED |
| Illumination Voltage (Nominal) | 2.1 VDC |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 8 mm |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 30 V |
| Voltage Rating - DC | 30 V |
HB15CKW Series
| Part | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Actuator Type | Actuator Marking | Current Rating (Amps) | Circuit | Mounting Type | Mechanical Life | Panel Cutout Dimensions [diameter] | Voltage Rating - DC | Electrical Life | Color - Actuator/Cap | Type | Voltage Rating - AC | Illumination Voltage (Nominal) | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | Solder Lug | 70 °C | -25 °C | On-Mom | Button Round | No Marking | 100 mA | SPDT | Panel Mount Front | 100000 Cycles | 8 mm | 30 V | 50000 Cycles | Green | Standard | 30 V | ||
NKK Switches | Solder Lug | 50 °C | -25 °C | On-Mom | Button Round | No Marking | 100 mA | SPDT | Panel Mount Front | 100000 Cycles | 8 mm | 30 V | 50000 Cycles | Clear | Illuminated Standard | 30 V | 3.5 VDC | Green LED |
NKK Switches | Solder Lug | 50 °C | -25 °C | On-Mom | Button Round | No Marking | 100 mA | SPDT | Panel Mount Front | 100000 Cycles | 8 mm | 30 V | 50000 Cycles | Clear | Illuminated Standard | 30 V | 2.1 VDC | Green LED |
NKK Switches | Solder Lug | 70 °C | -25 °C | On-Mom | Button Round | No Marking | 100 mA | SPDT | Panel Mount Front | 100000 Cycles | 8 mm | 30 V | 50000 Cycles | Yellow | Standard | 30 V | ||
NKK Switches | Solder Lug | 50 °C | -25 °C | On-Mom | Button Round | No Marking | 100 mA | SPDT | Panel Mount Front | 100000 Cycles | 8 mm | 30 V | 50000 Cycles | Clear | Illuminated Standard | 30 V | 2.05 VDC | Amber LED |
NKK Switches | Solder Lug | 50 °C | -25 °C | On-Mom | Button Round | No Marking | 100 mA | SPDT | Panel Mount Front | 100000 Cycles | 8 mm | 30 V | 50000 Cycles | Red | Illuminated Standard | 30 V | 2.1 VDC | LED Red |
NKK Switches | Solder Lug | 50 °C | -25 °C | On-Mom | Button Round | No Marking | 100 mA | SPDT | Panel Mount Front | 100000 Cycles | 8 mm | 30 V | 50000 Cycles | Clear | Illuminated Standard | 30 V | 3.3 VDC | LED White |
NKK Switches | Solder Lug | 50 °C | -25 °C | On-Mom | Button Round | No Marking | 100 mA | SPDT | Panel Mount Front | 100000 Cycles | 8 mm | 30 V | 50000 Cycles | Amber | Illuminated Standard | 30 V | 2.05 VDC | Amber LED |
NKK Switches | Solder Lug | 70 °C | -25 °C | On-Mom | Button Round | No Marking | 100 mA | SPDT | Panel Mount Front | 100000 Cycles | 8 mm | 30 V | 50000 Cycles | White | Standard | 30 V | ||
NKK Switches | Solder Lug | 70 °C | -25 °C | On-Mom | Plunger for Cap | No Marking | 100 mA | SPDT | Panel Mount Front | 100000 Cycles | 8 mm | 30 V | 50000 Cycles | Standard | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
HB15CKW Series

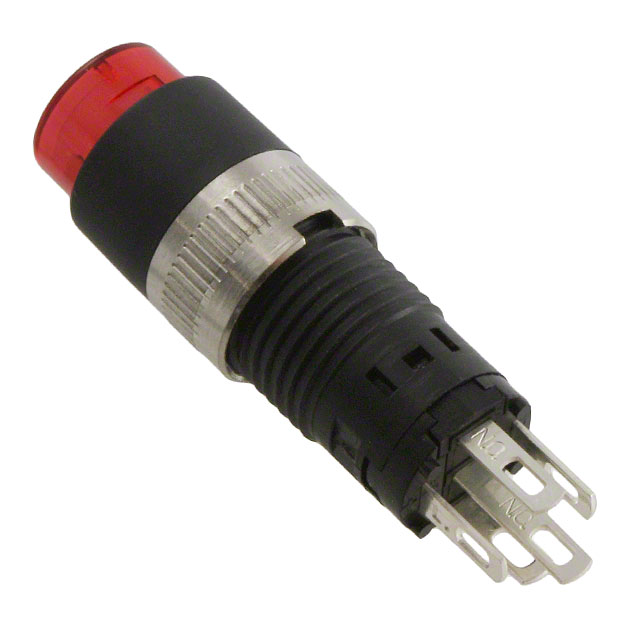

The HB15CKW01-5C-CB is a single-pole double-throw (SPDT) Subminiature Pushbutton Switch with On-(ON) non-shorting (break before make) silver plated phosphor bronze movable contact and stationary contacts. This switch features glass fiber reinforced polyamide base, black glass fiber reinforced polyamide housing, solder lug terminals and red bright LED cap. It also features compact front panel design, rear panel threaded mounting. Behind panel depth of less than 1-inch 8mm body diameter fits common size panel cutout. Latch down feature gives indication of circuit status. The dual, sliding contacts with self-cleaning action provide contact stability, high reliability and increased operating life. Molded-in terminals lock out flux, dust and other contaminants.
