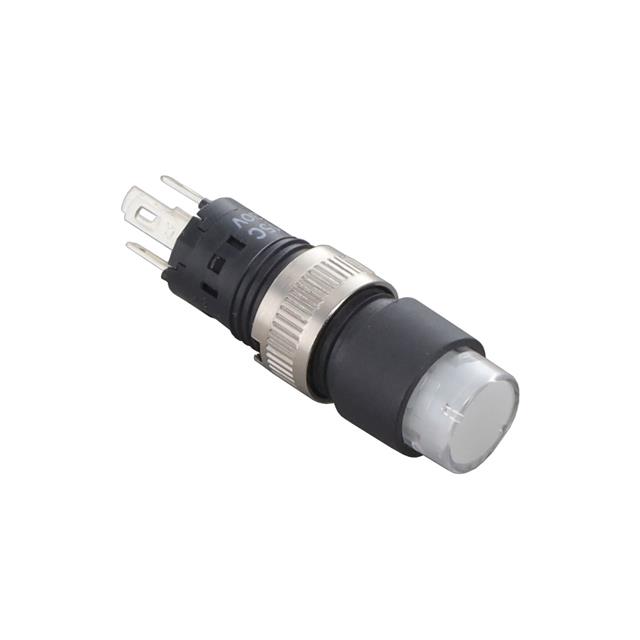

HB15CKW01-5D-JB

Active

NKK Switches

SWITCH PUSH SPDT 0.1A 30V

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HB15CKW01-5D-JB

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	100 mA
Electrical Life	50000 Cycles
Illumination Type, Color	Amber, LED
Illumination Voltage (Nominal)	2.05 VDC
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	8 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	30 V
Voltage Rating - DC	30 V

HB15CKW Series

Part	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Actuator Type	Actuator Marking	Current Rating (Amps)	Circuit	Mounting Type	Mechanical Life	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Electrical Life	Color - Actuator/Cap	Type	Voltage Rating - AC	Illumination Voltage (Nominal)	Illumination Type, Color
NKK Switches HB15CKW01-F	Solder Lug	70 °C	-25 °C	On-Mom	Button Round	No Marking	100 mA	SPDT	Panel Mount Front	100000 Cycles	8 mm	30 V	50000 Cycles	Green	Standard	30 V
NKK Switches HB15CKW01-6F-JB	Solder Lug	50 °C	-25 °C	On-Mom	Button Round	No Marking	100 mA	SPDT	Panel Mount Front	100000 Cycles	8 mm	30 V	50000 Cycles	Clear	Illuminated Standard	30 V	3.5 VDC	Green LED
NKK Switches HB15CKW01-5F-JB	Solder Lug	50 °C	-25 °C	On-Mom	Button Round	No Marking	100 mA	SPDT	Panel Mount Front	100000 Cycles	8 mm	30 V	50000 Cycles	Clear	Illuminated Standard	30 V	2.1 VDC	Green LED
NKK Switches HB15CKW01-E	Solder Lug	70 °C	-25 °C	On-Mom	Button Round	No Marking	100 mA	SPDT	Panel Mount Front	100000 Cycles	8 mm	30 V	50000 Cycles	Yellow	Standard	30 V
NKK Switches HB15CKW01-5D-JB	Solder Lug	50 °C	-25 °C	On-Mom	Button Round	No Marking	100 mA	SPDT	Panel Mount Front	100000 Cycles	8 mm	30 V	50000 Cycles	Clear	Illuminated Standard	30 V	2.05 VDC	Amber LED
NKK Switches HB15CKW01-5C-CB	Solder Lug	50 °C	-25 °C	On-Mom	Button Round	No Marking	100 mA	SPDT	Panel Mount Front	100000 Cycles	8 mm	30 V	50000 Cycles	Red	Illuminated Standard	30 V	2.1 VDC	LED Red
NKK Switches HB15CKW01-6B-JB	Solder Lug	50 °C	-25 °C	On-Mom	Button Round	No Marking	100 mA	SPDT	Panel Mount Front	100000 Cycles	8 mm	30 V	50000 Cycles	Clear	Illuminated Standard	30 V	3.3 VDC	LED White
NKK Switches HB15CKW01-5D-DB	Solder Lug	50 °C	-25 °C	On-Mom	Button Round	No Marking	100 mA	SPDT	Panel Mount Front	100000 Cycles	8 mm	30 V	50000 Cycles	Amber	Illuminated Standard	30 V	2.05 VDC	Amber LED
NKK Switches HB15CKW01-B	Solder Lug	70 °C	-25 °C	On-Mom	Button Round	No Marking	100 mA	SPDT	Panel Mount Front	100000 Cycles	8 mm	30 V	50000 Cycles	White	Standard	30 V
NKK Switches HB15CKW01	Solder Lug	70 °C	-25 °C	On-Mom	Plunger for Cap	No Marking	100 mA	SPDT	Panel Mount Front	100000 Cycles	8 mm	30 V	50000 Cycles		Standard	30 V
