HB15CKW01-B

Active

NKK Switches

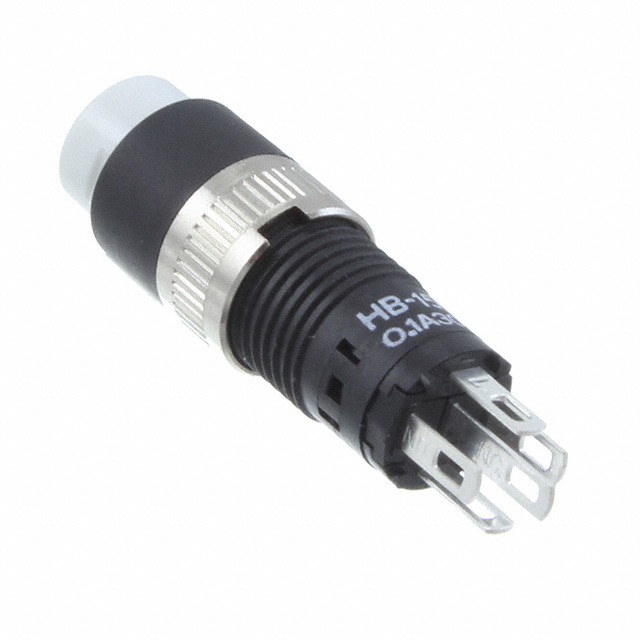

PUSHBUTTON SWITCH, HB SERIES, 8 MM, SPDT, ON-(ON), ROUND, WHITE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

HB15CKW01-B

Active

NKK Switches

PUSHBUTTON SWITCH, HB SERIES, 8 MM, SPDT, ON-(ON), ROUND, WHITE

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HB15CKW01-B

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	White
Current Rating (Amps)	100 mA
Electrical Life	50000 Cycles
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	8 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	30 V
Voltage Rating - DC	30 V

HB15CKW Series

Part	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Actuator Type	Actuator Marking	Current Rating (Amps)	Circuit	Mounting Type	Mechanical Life	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Electrical Life	Color - Actuator/Cap	Type	Voltage Rating - AC	Illumination Voltage (Nominal)	Illumination Type, Color
NKK Switches HB15CKW01-F	Solder Lug	70 °C	-25 °C	On-Mom	Button Round	No Marking	100 mA	SPDT	Panel Mount Front	100000 Cycles	8 mm	30 V	50000 Cycles	Green	Standard	30 V
NKK Switches HB15CKW01-6F-JB	Solder Lug	50 °C	-25 °C	On-Mom	Button Round	No Marking	100 mA	SPDT	Panel Mount Front	100000 Cycles	8 mm	30 V	50000 Cycles	Clear	Illuminated Standard	30 V	3.5 VDC	Green LED
NKK Switches HB15CKW01-5F-JB	Solder Lug	50 °C	-25 °C	On-Mom	Button Round	No Marking	100 mA	SPDT	Panel Mount Front	100000 Cycles	8 mm	30 V	50000 Cycles	Clear	Illuminated Standard	30 V	2.1 VDC	Green LED
NKK Switches HB15CKW01-E	Solder Lug	70 °C	-25 °C	On-Mom	Button Round	No Marking	100 mA	SPDT	Panel Mount Front	100000 Cycles	8 mm	30 V	50000 Cycles	Yellow	Standard	30 V
NKK Switches HB15CKW01-5D-JB	Solder Lug	50 °C	-25 °C	On-Mom	Button Round	No Marking	100 mA	SPDT	Panel Mount Front	100000 Cycles	8 mm	30 V	50000 Cycles	Clear	Illuminated Standard	30 V	2.05 VDC	Amber LED
NKK Switches HB15CKW01-5C-CB	Solder Lug	50 °C	-25 °C	On-Mom	Button Round	No Marking	100 mA	SPDT	Panel Mount Front	100000 Cycles	8 mm	30 V	50000 Cycles	Red	Illuminated Standard	30 V	2.1 VDC	LED Red
NKK Switches HB15CKW01-6B-JB	Solder Lug	50 °C	-25 °C	On-Mom	Button Round	No Marking	100 mA	SPDT	Panel Mount Front	100000 Cycles	8 mm	30 V	50000 Cycles	Clear	Illuminated Standard	30 V	3.3 VDC	LED White
NKK Switches HB15CKW01-5D-DB	Solder Lug	50 °C	-25 °C	On-Mom	Button Round	No Marking	100 mA	SPDT	Panel Mount Front	100000 Cycles	8 mm	30 V	50000 Cycles	Amber	Illuminated Standard	30 V	2.05 VDC	Amber LED
NKK Switches HB15CKW01-B	Solder Lug	70 °C	-25 °C	On-Mom	Button Round	No Marking	100 mA	SPDT	Panel Mount Front	100000 Cycles	8 mm	30 V	50000 Cycles	White	Standard	30 V
NKK Switches HB15CKW01	Solder Lug	70 °C	-25 °C	On-Mom	Plunger for Cap	No Marking	100 mA	SPDT	Panel Mount Front	100000 Cycles	8 mm	30 V	50000 Cycles		Standard	30 V
