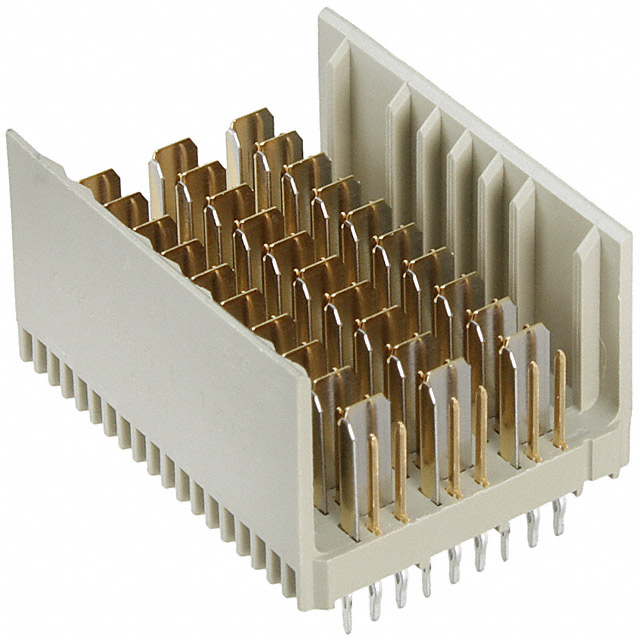

ActiveCONNECTOR, Z-PACK HM-ZD SERIES, 60 CONTACTS, 2.5 MM, PLUG, PRESS FIT, 6 ROWS
Deep-Dive with AI
Search across all available documentation for this part.
6469083-1
ActiveCONNECTOR, Z-PACK HM-ZD SERIES, 60 CONTACTS, 2.5 MM, PLUG, PRESS FIT, 6 ROWS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6469083-1 |
|---|---|
| Connector Style | High Speed |
| Connector Type | Header, Male Pins and Blades |
| Connector Usage | Backplane |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Current Rating (Amps) | 0.7 A |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Columns | 10 |
| Number of Positions | 60 |
| Number of Positions Loaded | All |
| Number of Rows | 6 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 0.098 in |
| Pitch [x] | 2.5 mm |
| Termination | Press-Fit |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
Z-PACK HM-Zd Series
The HM-Zd series Z-PACK HM-Zd Connector System is a high speed, differential connector system, which is compatible with the Z-PACK 2mm HM connector line. The Z-PACK HM-Zd connector provides Z-PACK 2mm HM connector users with a migration path for serial switching applications from 3.125 to 10+Gbps. The Z-PACK HM-Zd connector system features a highly reliable dual beam contact system with fully encompassing grounds dedicated to each differential pair. In addition, the Z-PACK HM-Zd connector footprint is optimized for both routability and system performance with the use of a 1.50 x 2.50mm (0.059 x 0.098 inch) row to column grid. The connector design features a robust mating interface with integral prealignment and polarization built into the mating interface.
