6469083-3

Active

TE Connectivity Raychem Cable Protection

CONN HARD METRIC HDR 60 POS 2.5MM SOLDER ST THRU-HOLE TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ENG_CD_6469083_B.pdf +1

6469083-3

Active

TE Connectivity Raychem Cable Protection

CONN HARD METRIC HDR 60 POS 2.5MM SOLDER ST THRU-HOLE TUBE

Deep-Dive with AI

DocumentsDatasheet ENG_CD_6469083_B.pdf +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6469083-3

Connector Style	High Speed
Connector Type	Header, Male Pins
Connector Usage	Backplane
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Current Rating (Amps)	0.7 A
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	10
Number of Positions	60
Number of Positions Loaded	All
Number of Rows	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm
Termination	Press-Fit
Voltage Rating	250 VDC

Z-PACK HM-Zd Series

Part	Number of Rows	Number of Columns	Pitch [x]	Pitch [x]	Number of Positions Loaded	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Mounting Type	Voltage Rating	Material Flammability Rating	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Connector Usage	Connector Type	Number of Positions	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]
TE Connectivity Raychem Cable Protection 6469083-3	6	10	0.098 in	2.5 mm	All	High Speed	-65 ░C	105 ░C	Press-Fit	Through Hole	250 VDC	UL94 V-0	Gold	50 µin	1.27 µm	0.7 A	Backplane	Header Male Pins	60
TE Connectivity Raychem Cable Protection 1469025-1		10	0.098 in	2.5 mm	All	High Speed	-65 ░C	105 ░C	Press-Fit	Through Hole	250 VDC	UL94 V-0	Gold	30 Áin	0.76 Ám	0.7 A	Backplane	Header Male Pins and Blades	60	20	40
TE Connectivity Raychem Cable Protection 6469083-1	6	10	0.098 in	2.5 mm	All	High Speed	-65 ░C	105 ░C	Press-Fit	Through Hole	250 VDC	UL94 V-0	Gold	30 Áin	0.76 Ám	0.7 A	Backplane	Header Male Pins and Blades	60
TE Connectivity Raychem Cable Protection 6469083-2	6	10	0.098 in	2.5 mm	All	High Speed	-65 ░C	105 ░C	Press-Fit	Through Hole	250 VDC	UL94 V-0	Gold	30 Áin	0.76 Ám	0.7 A	Backplane	Header Male Pins and Blades	60
TE Connectivity Raychem Cable Protection 1645694-1
TE Connectivity Raychem Cable Protection 2274678-1
TE Connectivity Raychem Cable Protection 1469074-1
TE Connectivity Raychem Cable Protection 1469081-1	6	10	0.098 in	2.5 mm	All	High Speed	-65 ░C	105 ░C	Press-Fit	Board Edge Right Angle Through Hole	250 VDC	UL94 V-0	Gold	30 Áin	0.76 Ám	0.7 A	Daughtercard	Receptacle Female Sockets	60
TE Connectivity Raychem Cable Protection 1469002-1	8	10	0.098 in	2.5 mm	All	High Speed	-65 ░C	105 ░C	Press-Fit	Through Hole	250 VDC	UL94 V-0	Gold	30 Áin	0.76 Ám	0.7 A	Backplane	Header Male Pins and Blades	120	40		80
TE Connectivity Raychem Cable Protection 6469048-1	8	10	0.098 in	2.5 mm	All	High Speed	-65 ░C	105 ░C	Press-Fit	Board Edge Right Angle Through Hole	250 VDC	UL94 V-0	Gold	30 Áin	0.76 Ám	0.7 A	Daughtercard	Header Male Pins and Blades	120	40		80

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	20	$ 23.24
		40	$ 22.83
		60	$ 22.43
		320	$ 20.39
Digikey	Tube	1	$ 15.63
		20	$ 14.56

Description

General part information

Z-PACK HM-Zd Series

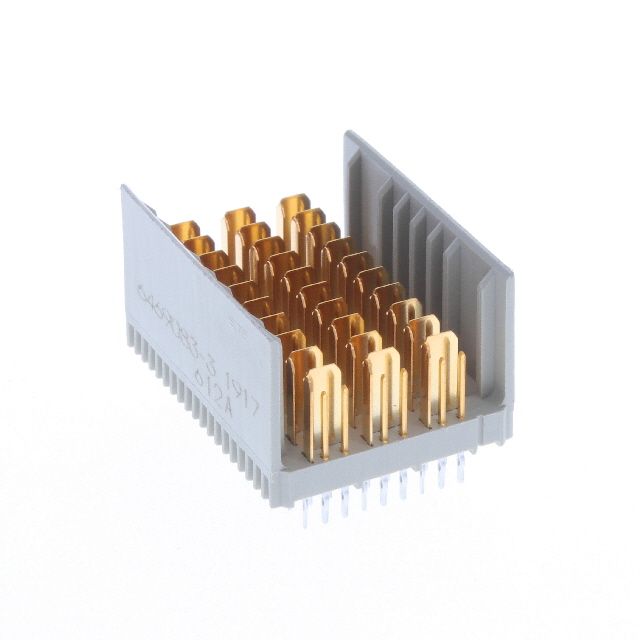

60 Position High Speed Backplane Connector, 6 Row, 10 Column, PCB Mount Header, Vertical, Partially Shrouded, Z-PACK HM-Zd

Documents

Technical documentation and resources

Datasheet

ENG_CD_6469083_B.pdf

Product Drawings

Datasheet

Digital Datasheet
