1469002-1
ActiveTE Connectivity Raychem Cable Protection
HM-ZD 4PR HDR 80P 5.2MM
Deep-Dive with AI
Search across all available documentation for this part.
1469002-1
ActiveTE Connectivity Raychem Cable Protection
HM-ZD 4PR HDR 80P 5.2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1469002-1 |
|---|---|
| Connector Style | High Speed |
| Connector Type | Header, Male Pins and Blades |
| Connector Usage | Backplane |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Layout, Typical [custom] | 80 |
| Contact Layout, Typical [custom] | 40 |
| Current Rating (Amps) | 0.7 A |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Columns | 10 |
| Number of Positions | 120 |
| Number of Positions Loaded | All |
| Number of Rows | 8 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 0.098 in |
| Pitch [x] | 2.5 mm |
| Termination | Press-Fit |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 15.41 | |
| 20 | $ 15.09 | |||
| 40 | $ 14.69 | |||
| 60 | $ 14.13 | |||
Description
General part information
Z-PACK HM-Zd Series

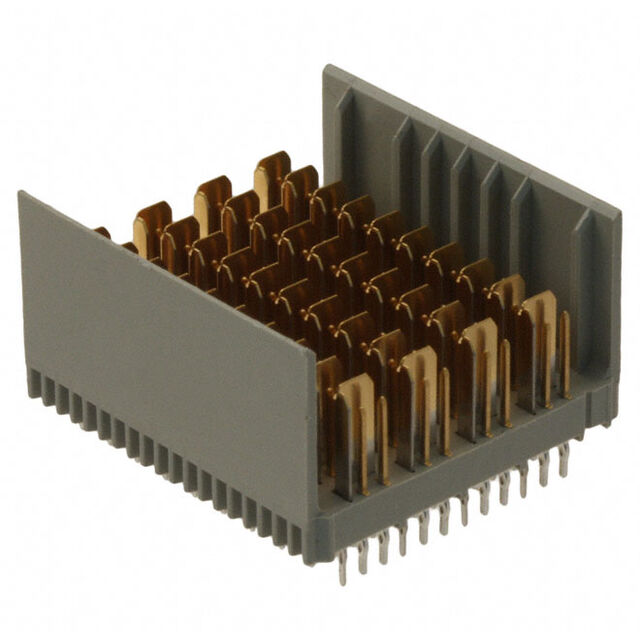

80 Position High Speed Backplane Connector, 8 Row, 10 Column, PCB Mount Header, Vertical, Partially Shrouded, Z-PACK HM-Zd
