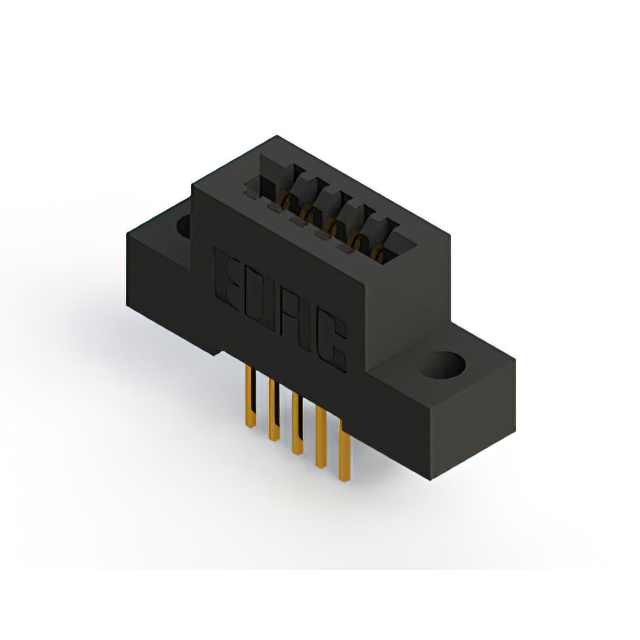

892-010-523-204
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 10POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
892-010-523-204
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 10POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 892-010-523-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Positions/Bay/Row [custom] | 5 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
892-010 Series
...
| Part | Read Out | Pitch [x] | Pitch [x] | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Color | Number of Positions/Bay/Row [custom] | Gender | Termination | Card Type | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Mounting Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Material - Insulation | Number of Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Single | 2.54 mm | 0.1 in | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | 10 | Female | Solder Eyelet(s) | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Cantilever | 10 | 125 °C | -40 °C | Copper Alloy | Through Hole | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Polyphenylene Sulfide (PPS) | 1 | |
EDAC Inc. | Dual | 2.54 mm | 0.1 in | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | 5 | Female | Solder | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Cantilever | 10 | 125 °C | -40 °C | Copper Alloy | Through Hole | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Polyphenylene Sulfide (PPS) | 2 | |
EDAC Inc. | Dual | 2.54 mm | 0.1 in | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | 5 | Female | Solder | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Cantilever | 10 | 125 °C | -40 °C | Copper Alloy | Through Hole | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Polyphenylene Sulfide (PPS) | 2 | |
EDAC Inc. | Single | 2.54 mm | 0.1 in | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | 10 | Female | Wire Wrap | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Cantilever | 10 | 125 °C | -40 °C | Copper Alloy | Through Hole | Flush Mount M3 Threaded Insert Top Opening | Polyphenylene Sulfide (PPS) | 1 | |||
EDAC Inc. | Single | 2.54 mm | 0.1 in | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | 10 | Female | Solder | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Cantilever | 10 | 125 °C | -40 °C | Copper Alloy | Through Hole | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Polyphenylene Sulfide (PPS) | 1 | |
EDAC Inc. | Dual | 2.54 mm | 0.1 in | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | 5 | Female | Solder | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Cantilever | 10 | 125 °C | -40 °C | Copper Alloy | Board Edge Straddle Mount | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Polyphenylene Sulfide (PPS) | 2 | Card Extender |
EDAC Inc. | Dual | 2.54 mm | 0.1 in | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | 5 | Female | Solder | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Cantilever | 10 | 125 °C | -40 °C | Copper Alloy | Board Edge Straddle Mount | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Polyphenylene Sulfide (PPS) | 2 | Card Extender |
EDAC Inc. | Single | 2.54 mm | 0.1 in | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | 10 | Female | Solder Eyelet(s) | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Cantilever | 10 | 125 °C | -40 °C | Copper Alloy | Through Hole | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Polyphenylene Sulfide (PPS) | 1 | |
EDAC Inc. | Single | 2.54 mm | 0.1 in | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | 10 | Female | Solder Eyelet(s) | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Cantilever | 10 | 125 °C | -40 °C | Copper Alloy | Through Hole | Flush Mount M3 Threaded Insert Top Opening | Polyphenylene Sulfide (PPS) | 1 | |||
EDAC Inc. | Single | 2.54 mm | 0.1 in | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | 10 | Female | Solder | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Cantilever | 10 | 125 °C | -40 °C | Copper Alloy | Through Hole | Polyphenylene Sulfide (PPS) | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
892-010 Series
10 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
