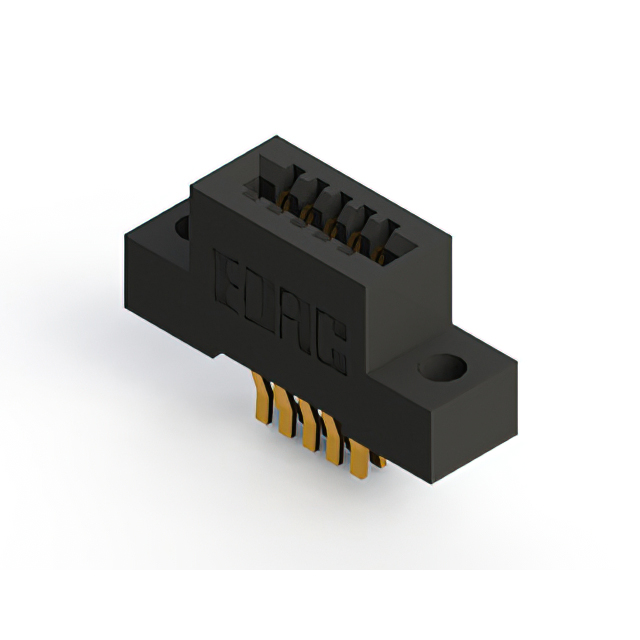

892-010-560-204

Active

EDAC Inc.

2.54MM CLAMP BOARD 10P -40℃~+125℃ P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

892-010-560-204

Active

EDAC Inc.

2.54MM CLAMP BOARD 10P -40℃~+125℃ P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	892-010-560-204

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Board Edge, Straddle Mount
Number of Positions	10
Number of Positions/Bay/Row [custom]	5
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

892-010 Series

...

Part	Read Out	Pitch [x]	Pitch [x]	Termination Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish	Color	Number of Positions/Bay/Row [custom]	Gender	Termination	Card Type	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Mounting Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Material - Insulation	Number of Rows	Features
EDAC Inc. 892-010-500-103	Single	2.54 mm	0.1 in	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	10	Female	Solder Eyelet(s)	Non Specified - Single Edge	10 Áin	0.25 Ám	Cantilever	10	125 °C	-40 °C	Copper Alloy	Through Hole	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Polyphenylene Sulfide (PPS)	1
EDAC Inc. 892-010-523-204	Dual	2.54 mm	0.1 in	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	5	Female	Solder	Non Specified - Dual Edge	10 Áin	0.25 Ám	Cantilever	10	125 °C	-40 °C	Copper Alloy	Through Hole	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	Polyphenylene Sulfide (PPS)	2
EDAC Inc. 892-010-524-212	Dual	2.54 mm	0.1 in	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	5	Female	Solder	Non Specified - Dual Edge	10 Áin	0.25 Ám	Cantilever	10	125 °C	-40 °C	Copper Alloy	Through Hole	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Polyphenylene Sulfide (PPS)	2
EDAC Inc. 892-010-541-107	Single	2.54 mm	0.1 in	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	10	Female	Wire Wrap	Non Specified - Single Edge	10 Áin	0.25 Ám	Cantilever	10	125 °C	-40 °C	Copper Alloy	Through Hole		Flush Mount M3 Threaded Insert Top Opening		Polyphenylene Sulfide (PPS)	1
EDAC Inc. 892-010-521-103	Single	2.54 mm	0.1 in	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	10	Female	Solder	Non Specified - Single Edge	10 Áin	0.25 Ám	Cantilever	10	125 °C	-40 °C	Copper Alloy	Through Hole	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Polyphenylene Sulfide (PPS)	1
EDAC Inc. 892-010-555-212	Dual	2.54 mm	0.1 in	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	5	Female	Solder	Non Specified - Dual Edge	10 Áin	0.25 Ám	Cantilever	10	125 °C	-40 °C	Copper Alloy	Board Edge Straddle Mount	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Polyphenylene Sulfide (PPS)	2	Card Extender
EDAC Inc. 892-010-560-204	Dual	2.54 mm	0.1 in	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	5	Female	Solder	Non Specified - Dual Edge	10 Áin	0.25 Ám	Cantilever	10	125 °C	-40 °C	Copper Alloy	Board Edge Straddle Mount	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	Polyphenylene Sulfide (PPS)	2	Card Extender
EDAC Inc. 892-010-500-102	Single	2.54 mm	0.1 in	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	10	Female	Solder Eyelet(s)	Non Specified - Single Edge	10 Áin	0.25 Ám	Cantilever	10	125 °C	-40 °C	Copper Alloy	Through Hole	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Polyphenylene Sulfide (PPS)	1
EDAC Inc. 892-010-500-107	Single	2.54 mm	0.1 in	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	10	Female	Solder Eyelet(s)	Non Specified - Single Edge	10 Áin	0.25 Ám	Cantilever	10	125 °C	-40 °C	Copper Alloy	Through Hole		Flush Mount M3 Threaded Insert Top Opening		Polyphenylene Sulfide (PPS)	1
EDAC Inc. 892-010-524-101	Single	2.54 mm	0.1 in	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	10	Female	Solder	Non Specified - Single Edge	10 Áin	0.25 Ám	Cantilever	10	125 °C	-40 °C	Copper Alloy	Through Hole				Polyphenylene Sulfide (PPS)	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 51.36
LCSC	Piece	1	$ 28.32
		200	$ 10.96
		500	$ 10.58
		1000	$ 10.38
Newark	Each	1	$ 61.64
		100	$ 44.05
		250	$ 40.23
		500	$ 35.18
		1000	$ 26.75

Description

General part information

892-010 Series

10 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
