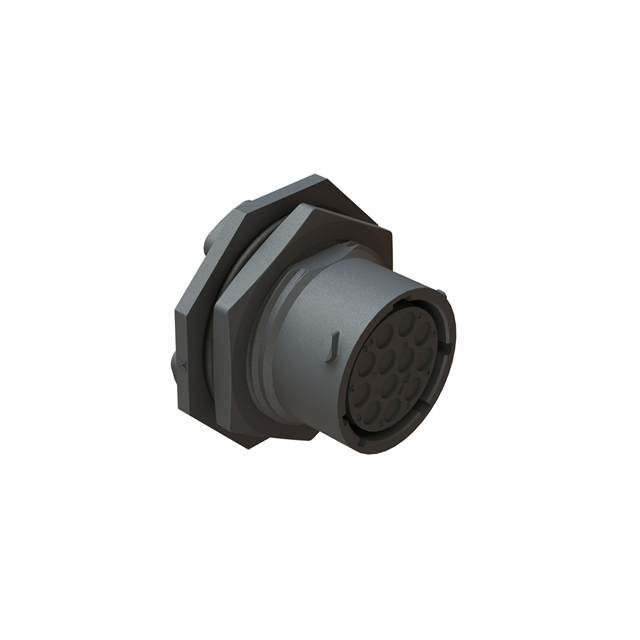

RTS714ND12S03

Active

Amphenol Sine Systems Corp

CONN RCPT FMALE 12P GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet ecomate-Family-Flyer-2019 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RTS714ND12S03

Applications	Instrumentation, Automation, Transportation, Marine, Telecom, Industrial
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Fastening Type	Bayonet Lock
Features	Board Guide
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	12
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Plastic
Shell Size - Insert	14-12
Shielding	Unshielded
Termination	Solder
Voltage Rating	500 VAC

RTS714 Series

Part	Contact Shape	Insert Material	Housing Color	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Number of Positions	Fastening Type	Contact Type	Material Flammability Rating	Connector Type	Note	Orientation	Ingress Protection	Includes	Type	Contact Size	Mounting Feature	Features	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Color	Contact Material	Primary Material	Current Rating (Amps)	Applications	Voltage Rating	Mounting Type	Termination	Contact Finish - Mating	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Number of Positions [custom]	Number of Positions [custom]
Amphenol Sine Systems Corp RTS714N12P03	Circular	Thermoplastic	Black	14-12	125 °C	-40 °C	Unshielded	12	Bayonet Lock	Crimp	UL94 V-0	Receptacle Housing	Contacts Not Included	N	IP67 IP69K	1 Connector 1 Gasket 1 Nut 1 O-Ring	For Male Pins	16	Bulkhead - Front Side Nut
Amphenol Sine Systems Corp RTS714N8S03	Circular	Thermoplastic	Black	14-8	125 °C	-40 °C	Unshielded	8	Bayonet Lock	Crimp	UL94 V-0	Receptacle Housing	Contacts Not Included	N	IP67 IP69K	1 Connector 1 Gasket 1 Nut 1 O-Ring	For Female Sockets	16	Bulkhead - Front Side Nut
Amphenol Sine Systems Corp RTS714N12S03	Circular	Thermoplastic	Black	14-12	125 °C	-40 °C	Unshielded	12	Bayonet Lock	Crimp	UL94 V-0	Receptacle Housing	Contacts Not Included	N	IP67 IP69K	1 Connector 1 Gasket 1 Nut 1 O-Ring	For Female Sockets	16	Bulkhead - Front Side Nut
Amphenol Sine Systems Corp RTS714N19PHEC03	Circular	Thermoplastic	Black		125 °C	-40 °C	Unshielded	19	Bayonet Lock	Crimp	UL94 V-0	Receptacle Housing	Contacts Not Included	N	IP67 IP69K	1 Backshell 1 Connector 1 Gasket 1 O-Ring 1 Ring 1 Seal	For Male Pins	20	Bulkhead - Front Side Nut	Backshell	19	14
Amphenol Sine Systems Corp RTS714ND19P0332		Thermoplastic			125 °C	-40 °C	Unshielded	19	Bayonet Lock		UL94 V-0	Male Pins Receptacle		N	IP67 IP69K				Bulkhead - Front Side Nut		19	14	Black	Copper Alloy	Plastic	7.5 A	Automation Industrial Instrumentation Marine Telecom Transportation	250 VAC	Panel Mount Through Hole	Solder	Gold
Amphenol Sine Systems Corp RTS714N3P03	Circular	Thermoplastic	Black	14-3	125 °C	-40 °C	Unshielded		Bayonet Lock	Crimp	UL94 V-0	Receptacle Housing	Contacts Not Included	N	IP67 IP69K	1 Connector 1 Gasket 1 Nut 1 O-Ring	For Male Pins	8	Bulkhead - Front Side Nut
Amphenol Sine Systems Corp RTS714N7P03	Circular	Thermoplastic	Black		125 °C	-40 °C	Unshielded		Bayonet Lock	Crimp	UL94 V-0	Receptacle Housing	Contacts Not Included	N	IP67 IP69K	1 Connector 1 Gasket 1 Nut 1 O-Ring	For Male Pins	16	Bulkhead - Front Side Nut													14	7	1	6
Amphenol Sine Systems Corp RTS714N4P03	Circular	Thermoplastic	Black		125 °C	-40 °C	Unshielded	4	Bayonet Lock	Crimp	UL94 V-0	Receptacle Housing	Contacts Not Included	N	IP67 IP69K	1 Connector 1 Gasket 1 Nut 1 O-Ring	For Male Pins	2.5 mm	Bulkhead - Front Side Nut													14	4
Amphenol Sine Systems Corp RTS714ND12S0332		Thermoplastic		14-12	125 °C	-40 °C	Unshielded	12	Bayonet Lock		UL94 V-0	Receptacle Female Sockets		N	IP67 IP69K				Bulkhead - Front Side Nut				Black	Copper Alloy	Plastic	13 A	Automation Industrial Instrumentation Marine Telecom Transportation	500 VAC	Panel Mount Through Hole	Solder	Gold
Amphenol Sine Systems Corp RTS714ND12S03		Thermoplastic		14-12	125 °C	-40 °C	Unshielded	12	Bayonet Lock		UL94 V-0	Receptacle Female Sockets		N	IP67 IP69K				Bulkhead - Front Side Nut	Board Guide			Black	Copper Alloy	Plastic	13 A	Automation Industrial Instrumentation Marine Telecom Transportation	500 VAC	Panel Mount Through Hole	Solder	Gold
