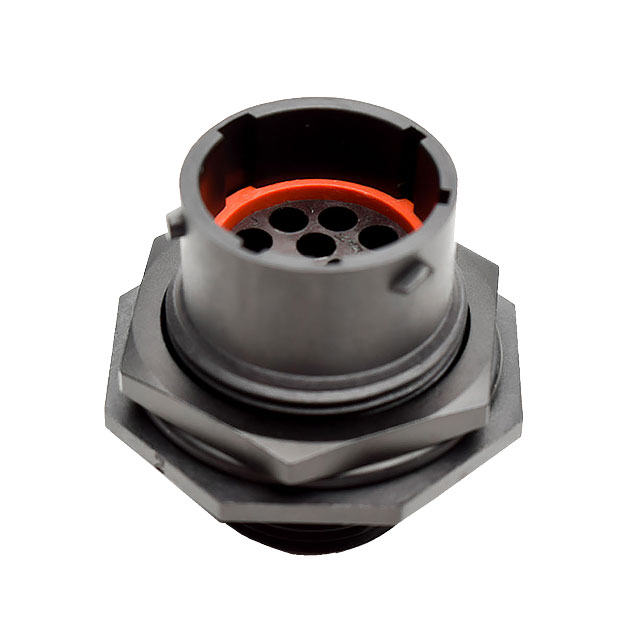

RTS714N12S03
ActiveAmphenol Sine Systems Corp
CONN RCPT HSG FMALE 12POS PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
RTS714N12S03
ActiveAmphenol Sine Systems Corp
CONN RCPT HSG FMALE 12POS PNL MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RTS714N12S03 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Housing Color | Black |
| Includes | 1 O-Ring, 1 Gasket, 1 Nut, 1 Connector |
| Ingress Protection | IP69K, IP67 |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Size - Insert | 14-12 |
| Shielding | Unshielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.01 | |
| 10 | $ 9.01 | |||
| 25 | $ 8.49 | |||
| 50 | $ 8.27 | |||
| 200 | $ 8.05 | |||
| 400 | $ 7.18 | |||
| 600 | $ 6.75 | |||
| 1000 | $ 5.96 | |||
Description
General part information
RTS714 Series
12 Position Circular Connector Receptacle Housing Panel Mount
