RTS714N12P03

Active

Amphenol Sine Systems Corp

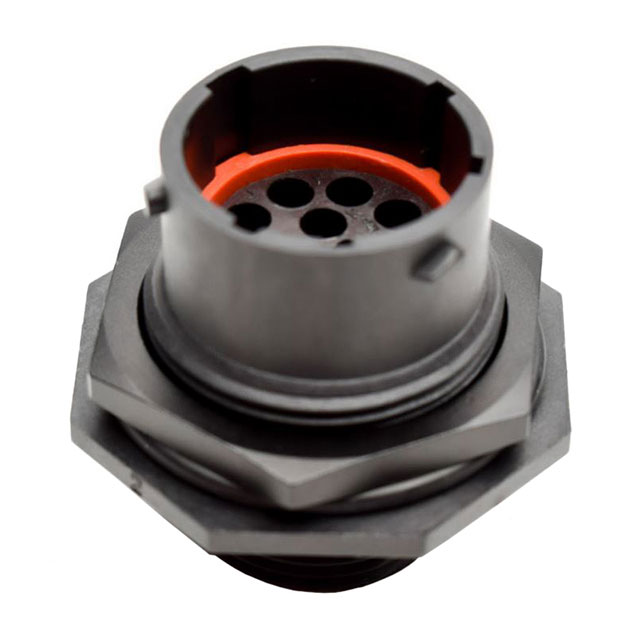

CONN RCPT HSNG MALE 12POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEco|mate® Aquarius™ Flyer ecomate-Family-Flyer-2019 +1

RTS714N12P03

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG MALE 12POS PNL MT

Deep-Dive with AI

DocumentsEco|mate® Aquarius™ Flyer ecomate-Family-Flyer-2019 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RTS714N12P03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Includes	1 O-Ring, 1 Gasket, 1 Nut, 1 Connector
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	12
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Size - Insert	14-12
Shielding	Unshielded
Type	For Male Pins

RTS714 Series

Part	Contact Shape	Insert Material	Housing Color	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Number of Positions	Fastening Type	Contact Type	Material Flammability Rating	Connector Type	Note	Orientation	Ingress Protection	Includes	Type	Contact Size	Mounting Feature	Features	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Color	Contact Material	Primary Material	Current Rating (Amps)	Applications	Voltage Rating	Mounting Type	Termination	Contact Finish - Mating	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Number of Positions [custom]	Number of Positions [custom]
Amphenol Sine Systems Corp RTS714N12P03	Circular	Thermoplastic	Black	14-12	125 °C	-40 °C	Unshielded	12	Bayonet Lock	Crimp	UL94 V-0	Receptacle Housing	Contacts Not Included	N	IP67 IP69K	1 Connector 1 Gasket 1 Nut 1 O-Ring	For Male Pins	16	Bulkhead - Front Side Nut
Amphenol Sine Systems Corp RTS714N8S03	Circular	Thermoplastic	Black	14-8	125 °C	-40 °C	Unshielded	8	Bayonet Lock	Crimp	UL94 V-0	Receptacle Housing	Contacts Not Included	N	IP67 IP69K	1 Connector 1 Gasket 1 Nut 1 O-Ring	For Female Sockets	16	Bulkhead - Front Side Nut
Amphenol Sine Systems Corp RTS714N12S03	Circular	Thermoplastic	Black	14-12	125 °C	-40 °C	Unshielded	12	Bayonet Lock	Crimp	UL94 V-0	Receptacle Housing	Contacts Not Included	N	IP67 IP69K	1 Connector 1 Gasket 1 Nut 1 O-Ring	For Female Sockets	16	Bulkhead - Front Side Nut
Amphenol Sine Systems Corp RTS714N19PHEC03	Circular	Thermoplastic	Black		125 °C	-40 °C	Unshielded	19	Bayonet Lock	Crimp	UL94 V-0	Receptacle Housing	Contacts Not Included	N	IP67 IP69K	1 Backshell 1 Connector 1 Gasket 1 O-Ring 1 Ring 1 Seal	For Male Pins	20	Bulkhead - Front Side Nut	Backshell	19	14
Amphenol Sine Systems Corp RTS714ND19P0332		Thermoplastic			125 °C	-40 °C	Unshielded	19	Bayonet Lock		UL94 V-0	Male Pins Receptacle		N	IP67 IP69K				Bulkhead - Front Side Nut		19	14	Black	Copper Alloy	Plastic	7.5 A	Automation Industrial Instrumentation Marine Telecom Transportation	250 VAC	Panel Mount Through Hole	Solder	Gold
Amphenol Sine Systems Corp RTS714N3P03	Circular	Thermoplastic	Black	14-3	125 °C	-40 °C	Unshielded		Bayonet Lock	Crimp	UL94 V-0	Receptacle Housing	Contacts Not Included	N	IP67 IP69K	1 Connector 1 Gasket 1 Nut 1 O-Ring	For Male Pins	8	Bulkhead - Front Side Nut
Amphenol Sine Systems Corp RTS714N7P03	Circular	Thermoplastic	Black		125 °C	-40 °C	Unshielded		Bayonet Lock	Crimp	UL94 V-0	Receptacle Housing	Contacts Not Included	N	IP67 IP69K	1 Connector 1 Gasket 1 Nut 1 O-Ring	For Male Pins	16	Bulkhead - Front Side Nut													14	7	1	6
Amphenol Sine Systems Corp RTS714N4P03	Circular	Thermoplastic	Black		125 °C	-40 °C	Unshielded	4	Bayonet Lock	Crimp	UL94 V-0	Receptacle Housing	Contacts Not Included	N	IP67 IP69K	1 Connector 1 Gasket 1 Nut 1 O-Ring	For Male Pins	2.5 mm	Bulkhead - Front Side Nut													14	4
Amphenol Sine Systems Corp RTS714ND12S0332		Thermoplastic		14-12	125 °C	-40 °C	Unshielded	12	Bayonet Lock		UL94 V-0	Receptacle Female Sockets		N	IP67 IP69K				Bulkhead - Front Side Nut				Black	Copper Alloy	Plastic	13 A	Automation Industrial Instrumentation Marine Telecom Transportation	500 VAC	Panel Mount Through Hole	Solder	Gold
Amphenol Sine Systems Corp RTS714ND12S03		Thermoplastic		14-12	125 °C	-40 °C	Unshielded	12	Bayonet Lock		UL94 V-0	Receptacle Female Sockets		N	IP67 IP69K				Bulkhead - Front Side Nut	Board Guide			Black	Copper Alloy	Plastic	13 A	Automation Industrial Instrumentation Marine Telecom Transportation	500 VAC	Panel Mount Through Hole	Solder	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.81
		10	$ 5.25
		25	$ 4.96
		50	$ 4.84
		100	$ 4.60
		300	$ 4.26

Description

General part information

RTS714 Series

12 Position Circular Connector Receptacle Housing Panel Mount

Documents

Technical documentation and resources

Eco|mate® Aquarius™ Flyer

Datasheet

ecomate-Family-Flyer-2019

Datasheet
