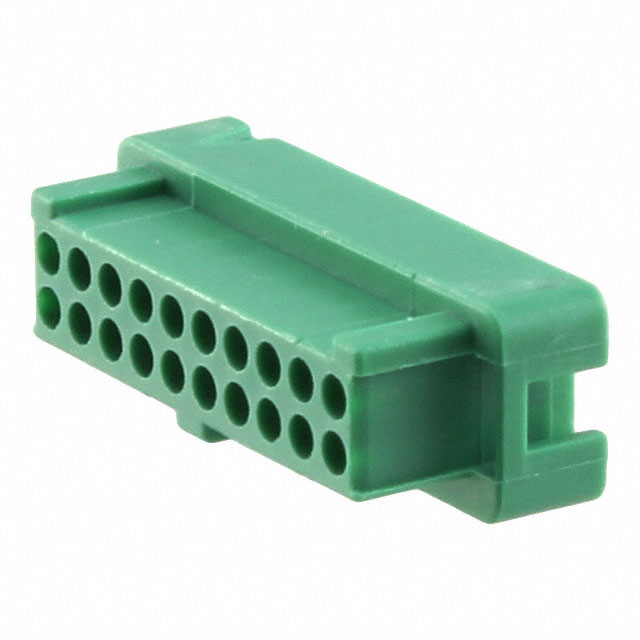

G125-2042096L0 - G125-2042096L0

G125-2042096L0

Active
Harwin Inc.

CONNECTOR HOUSING, BLACK / GREEN, G125 SERIES, RECEPTACLE, 20 POSITIONS, 1.25 MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsG125-0010005Datasheet+7
G125-2042096L0 - G125-2042096L0

G125-2042096L0

Active
Harwin Inc.

CONNECTOR HOUSING, BLACK / GREEN, G125 SERIES, RECEPTACLE, 20 POSITIONS, 1.25 MM

Deep-Dive with AI

DocumentsG125-0010005Datasheet+7

Technical Specifications

Parameters and characteristics for this part

SpecificationG125-2042096L0
Connector TypeReceptacle
Contact TerminationCrimp
Contact TypeFemale Socket
Fastening TypeLatch Holder
FeaturesPotting Wall
Insulation MaterialPolyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled
Mounting TypeFree Hanging (In-Line)
NoteContacts Not Included
Number of Positions20
Number of Rows2
Operating Temperature [Max]150 °C
Operating Temperature [Min]-65 ░C
Pitch [x]0.049 in
Pitch [x]1.25 mm
Row Spacing1.25 mm
Row Spacing0.049 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 3.12
10$ 2.84
30$ 2.69
50$ 2.62
100$ 2.50
250$ 2.19
500$ 2.12
1000$ 1.81
2500$ 1.69
NewarkEach 1$ 2.96
10$ 2.41
50$ 2.09
100$ 1.96
250$ 1.81
500$ 1.70
1000$ 1.60
2500$ 1.55

Description

General part information

G125-204 Series

20 Rectangular Connectors - Housings Receptacle 0.049" (1.25mm)
