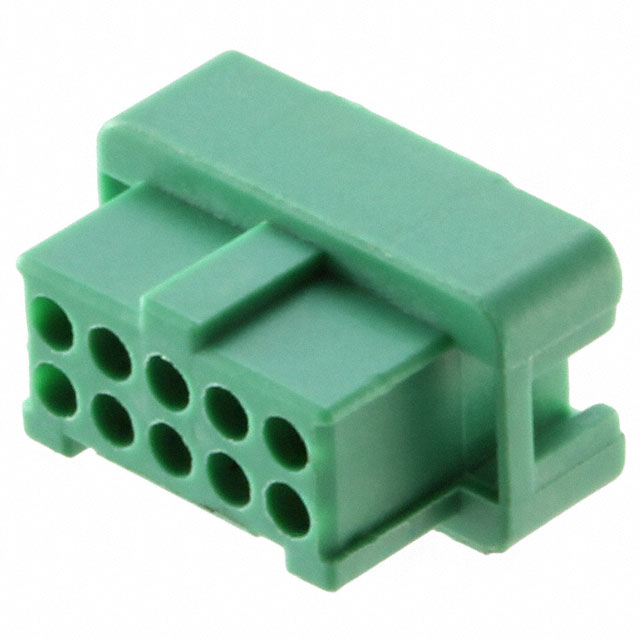

G125-2041096L0

Active

Harwin Inc.

BOARD CONNECTOR, 10 CONTACT(S), 2 ROW(S), FEMALE, 0.049 INCH PITCH, CRIMP TERMINAL, LOCKING, PLUG,

Search across all available documentation for this part.

Active

Harwin Inc.

BOARD CONNECTOR, 10 CONTACT(S), 2 ROW(S), FEMALE, 0.049 INCH PITCH, CRIMP TERMINAL, LOCKING, PLUG,

Technical Specifications

Parameters and characteristics for this part

Specification	G125-2041096L0

Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Potting Wall
Insulation Material	Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	10
Number of Rows	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.049 in
Pitch [x]	1.25 mm
Row Spacing	1.25 mm
Row Spacing	0.049 in

Part	Connector Type	Mounting Type	Contact Type	Note	Insulation Material	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Fastening Type	Features	Contact Termination	Row Spacing	Row Spacing	Number of Positions	Number of Positions
Harwin Inc. G125-2043496L0	Receptacle	Free Hanging (In-Line)	Female Socket	Contacts Not Included	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	-65 ░C	150 °C	2	Latch Holder	Potting Wall	Crimp	1.25 mm	0.049 in	34
Harwin Inc. G125-2042096L0	Receptacle	Free Hanging (In-Line)	Female Socket	Contacts Not Included	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	-65 ░C	150 °C	2	Latch Holder	Potting Wall	Crimp	1.25 mm	0.049 in	20
Harwin Inc. G125-2041696L0	Receptacle	Free Hanging (In-Line)	Female Socket	Contacts Not Included	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	-65 ░C	150 °C	2	Latch Holder	Potting Wall	Crimp	1.25 mm	0.049 in		16
Harwin Inc. G125-2041096L0	Receptacle	Free Hanging (In-Line)	Female Socket	Contacts Not Included	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	-65 ░C	150 °C	2	Latch Holder	Potting Wall	Crimp	1.25 mm	0.049 in	10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Rectangular Connectors - Housings Receptacle 0.049" (1.25mm)
