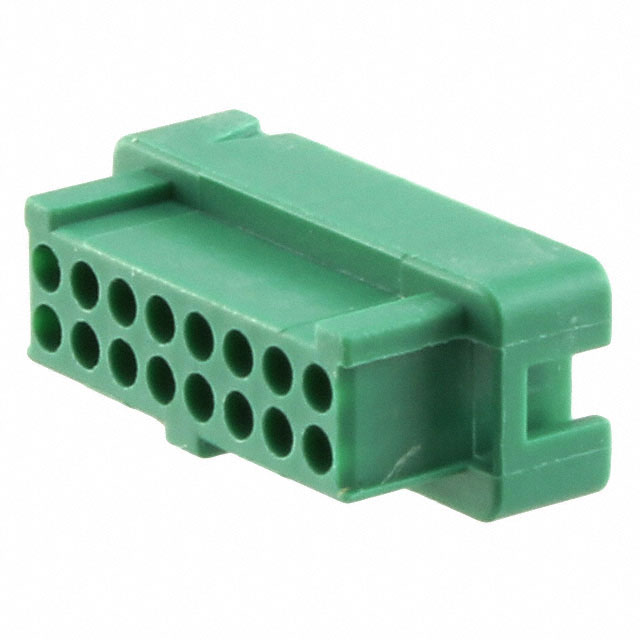

G125-2041696L0 - G125-2041696L0

G125-2041696L0

Active
Harwin Inc.

BOARD CONNECTOR, 16 CONTACT(S), 2 ROW(S), FEMALE, 0.049 INCH PITCH, CRIMP TERMINAL, LOCKING, PLUG, LEAD FREE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsG125-2040696L0G125 Spec Sheet+6
G125-2041696L0 - G125-2041696L0

G125-2041696L0

Active
Harwin Inc.

BOARD CONNECTOR, 16 CONTACT(S), 2 ROW(S), FEMALE, 0.049 INCH PITCH, CRIMP TERMINAL, LOCKING, PLUG, LEAD FREE

Deep-Dive with AI

DocumentsG125-2040696L0G125 Spec Sheet+6

Technical Specifications

Parameters and characteristics for this part

SpecificationG125-2041696L0
Connector TypeReceptacle
Contact TerminationCrimp
Contact TypeFemale Socket
Fastening TypeLatch Holder
FeaturesPotting Wall
Insulation MaterialPolyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled
Mounting TypeFree Hanging (In-Line)
NoteContacts Not Included
Number of Positions16
Number of Rows2
Operating Temperature [Max]150 °C
Operating Temperature [Min]-65 ░C
Pitch [x]0.049 in
Pitch [x]1.25 mm
Row Spacing1.25 mm
Row Spacing0.049 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 3.60
10$ 2.75
25$ 2.48
50$ 2.29
100$ 2.12
250$ 1.93
500$ 1.79
1000$ 1.67
2500$ 1.53
NewarkEach 1$ 2.56
10$ 2.40
25$ 2.10
50$ 1.84
100$ 1.76
250$ 1.68
500$ 1.56
1000$ 1.50

Description

General part information

G125-204 Series

16 Rectangular Connectors - Housings Receptacle 0.049" (1.25mm)
