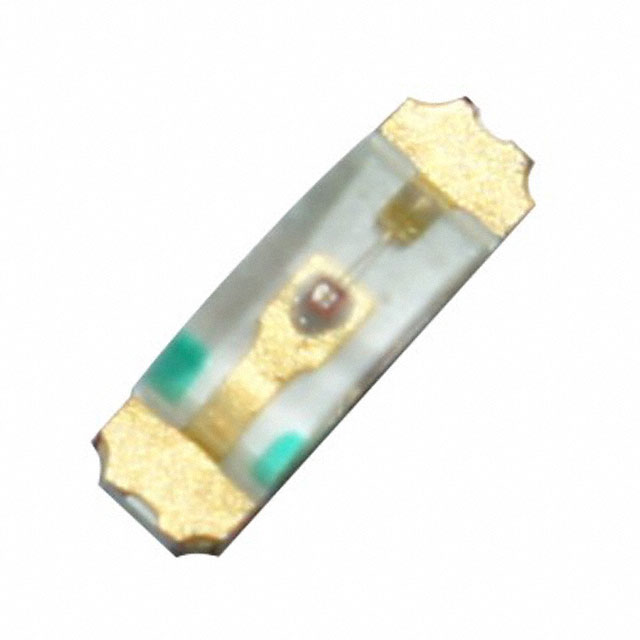

QBLP615-AG

Active

QT Brightek (QTB)

LED YLW-GRN CLEAR 1206 SMD R/A

Search across all available documentation for this part.

Active

QT Brightek (QTB)

LED YLW-GRN CLEAR 1206 SMD R/A

Technical Specifications

Parameters and characteristics for this part

Part	Color	Viewing Angle	Supplier Device Package	Wavelength - Dominant [custom]	Height (Max) [Max] [z]	Mounting Type	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Lens Transparency	Package / Case	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Color	Size / Dimension [y]	Size / Dimension [x]	Lens Size [x]	Lens Size [y]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Configuration	Lens Style	Millicandela Rating	Current - Test	Wavelength - Dominant	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]
QT Brightek (QTB) QBLP615-RGB-2943	Blue Green Red	150 °	1206	470 nm 525 nm 620 nm	1.1 mm	Surface Mount Right Angle	3.1 V	3.1 V	2 V	Diffused	1206 (3216 Metric)	110 mcd	620 mcd	190 mcd	Colorless	1.3 mm	3.2 mm	2 mm	1 mm	20 mA	20 mA	20 mA	Common Anode	Rectangle with Domed Top
QT Brightek (QTB) QBLP615-AG	Yellow-Green	150 °	1206		1 mm	Surface Mount Right Angle				Clear	2-SMD 1206				Colorless	1.4 mm	3.2 mm	2 mm	1 mm				Standard	Rectangle with Domed Top	63 mcd	20 mA	570 nm	2.5 V
QT Brightek (QTB) QBLP615-RGB-3053	Blue Green Red	150 °	1206		1.1 mm	Surface Mount Right Angle				Diffused	1206 (3216 Metric)	63 mcd	363 mcd	116 mcd	Colorless	1.3 mm	3.2 mm	2 mm	1 mm	6 mA	9.8 mA	7 mA	Common Anode	Rectangle with Domed Top				2 V 2.7 V 2.8 V	527 nm	470 nm	620 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Yellow-Green 570nm LED Indication - Discrete 2.5V 2-SMD, 1206
