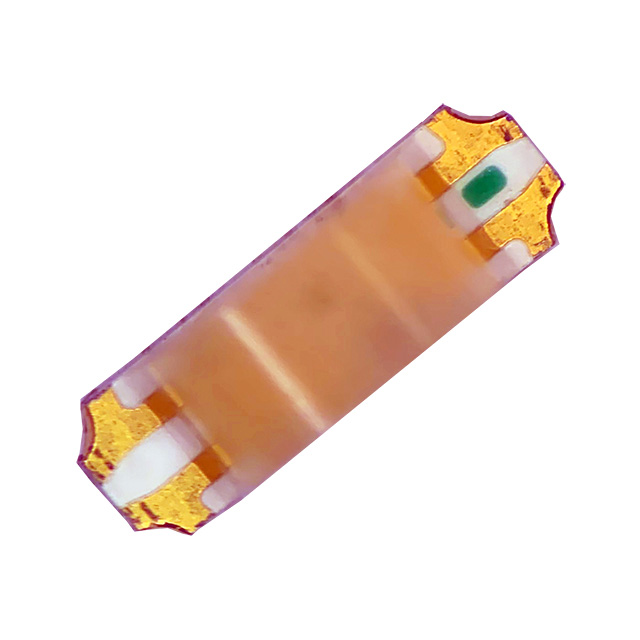

QBLP615-RGB-3053

Active

QT Brightek (QTB)

LED RGB DIFFUSED 1206 SMD R/A

Search across all available documentation for this part.

Active

QT Brightek (QTB)

LED RGB DIFFUSED 1206 SMD R/A

Technical Specifications

Parameters and characteristics for this part

Part	Color	Viewing Angle	Supplier Device Package	Wavelength - Dominant [custom]	Height (Max) [Max] [z]	Mounting Type	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Lens Transparency	Package / Case	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Color	Size / Dimension [y]	Size / Dimension [x]	Lens Size [x]	Lens Size [y]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Configuration	Lens Style	Millicandela Rating	Current - Test	Wavelength - Dominant	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]
QT Brightek (QTB) QBLP615-RGB-2943	Blue Green Red	150 °	1206	470 nm 525 nm 620 nm	1.1 mm	Surface Mount Right Angle	3.1 V	3.1 V	2 V	Diffused	1206 (3216 Metric)	110 mcd	620 mcd	190 mcd	Colorless	1.3 mm	3.2 mm	2 mm	1 mm	20 mA	20 mA	20 mA	Common Anode	Rectangle with Domed Top
QT Brightek (QTB) QBLP615-AG	Yellow-Green	150 °	1206		1 mm	Surface Mount Right Angle				Clear	2-SMD 1206				Colorless	1.4 mm	3.2 mm	2 mm	1 mm				Standard	Rectangle with Domed Top	63 mcd	20 mA	570 nm	2.5 V
QT Brightek (QTB) QBLP615-RGB-3053	Blue Green Red	150 °	1206		1.1 mm	Surface Mount Right Angle				Diffused	1206 (3216 Metric)	63 mcd	363 mcd	116 mcd	Colorless	1.3 mm	3.2 mm	2 mm	1 mm	6 mA	9.8 mA	7 mA	Common Anode	Rectangle with Domed Top				2 V 2.7 V 2.8 V	527 nm	470 nm	620 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red, Green, Blue (RGB) 620nm Red, 527nm Green, 470nm Blue LED Indication - Discrete 2V Red, 2.7V Green, 2.8V Blue 1206 (3216 Metric)
