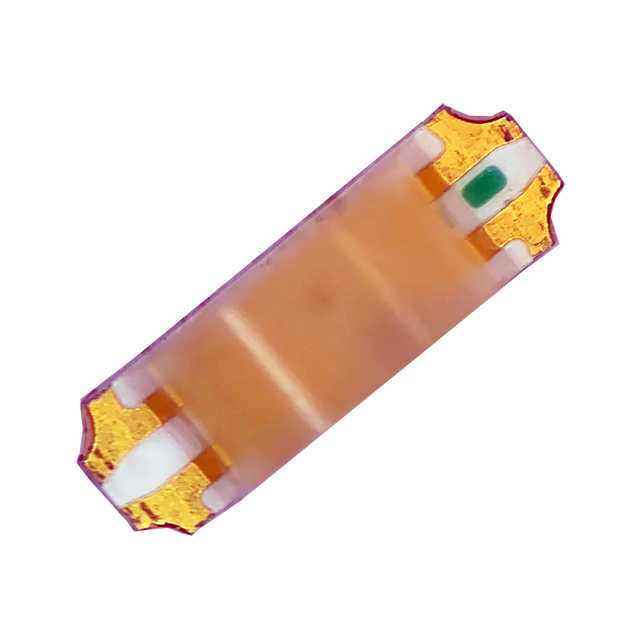

QBLP615-RGB-2943

Active

QT Brightek (QTB)

LED RGB DIFFUSED 1206 SMD R/A

Search across all available documentation for this part.

Active

QT Brightek (QTB)

LED RGB DIFFUSED 1206 SMD R/A

Technical Specifications

Parameters and characteristics for this part

Specification	QBLP615-RGB-2943

Color	Red, Green, Blue
Configuration	Common Anode
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Height (Max) [Max] [z]	1.1 mm
Lens Color	Colorless
Lens Size [x]	2 mm
Lens Size [y]	1 mm
Lens Style	Rectangle with Domed Top
Lens Transparency	Diffused
Millicandela Rating [custom]	110 mcd
Millicandela Rating [custom]	620 mcd
Millicandela Rating [custom]	190 mcd
Mounting Type	Surface Mount, Right Angle
Package / Case	1206 (3216 Metric)
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	1.3 mm
Supplier Device Package	1206
Viewing Angle	150 °
Voltage - Forward (Vf) (Typ) [custom]	3.1 V
Voltage - Forward (Vf) (Typ) [custom]	3.1 V
Voltage - Forward (Vf) (Typ) [custom]	2 V
Wavelength - Dominant [custom]	470 nm, 525 nm, 620 nm

Part	Color	Viewing Angle	Supplier Device Package	Wavelength - Dominant [custom]	Height (Max) [Max] [z]	Mounting Type	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Lens Transparency	Package / Case	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Color	Size / Dimension [y]	Size / Dimension [x]	Lens Size [x]	Lens Size [y]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Configuration	Lens Style	Millicandela Rating	Current - Test	Wavelength - Dominant	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]
QT Brightek (QTB) QBLP615-RGB-2943	Blue Green Red	150 °	1206	470 nm 525 nm 620 nm	1.1 mm	Surface Mount Right Angle	3.1 V	3.1 V	2 V	Diffused	1206 (3216 Metric)	110 mcd	620 mcd	190 mcd	Colorless	1.3 mm	3.2 mm	2 mm	1 mm	20 mA	20 mA	20 mA	Common Anode	Rectangle with Domed Top
QT Brightek (QTB) QBLP615-AG	Yellow-Green	150 °	1206		1 mm	Surface Mount Right Angle				Clear	2-SMD 1206				Colorless	1.4 mm	3.2 mm	2 mm	1 mm				Standard	Rectangle with Domed Top	63 mcd	20 mA	570 nm	2.5 V
QT Brightek (QTB) QBLP615-RGB-3053	Blue Green Red	150 °	1206		1.1 mm	Surface Mount Right Angle				Diffused	1206 (3216 Metric)	63 mcd	363 mcd	116 mcd	Colorless	1.3 mm	3.2 mm	2 mm	1 mm	6 mA	9.8 mA	7 mA	Common Anode	Rectangle with Domed Top				2 V 2.7 V 2.8 V	527 nm	470 nm	620 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red, Green, Blue (RGB) 620nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2V Red, 3.1V Green, 3.1V Blue 1206 (3216 Metric)
