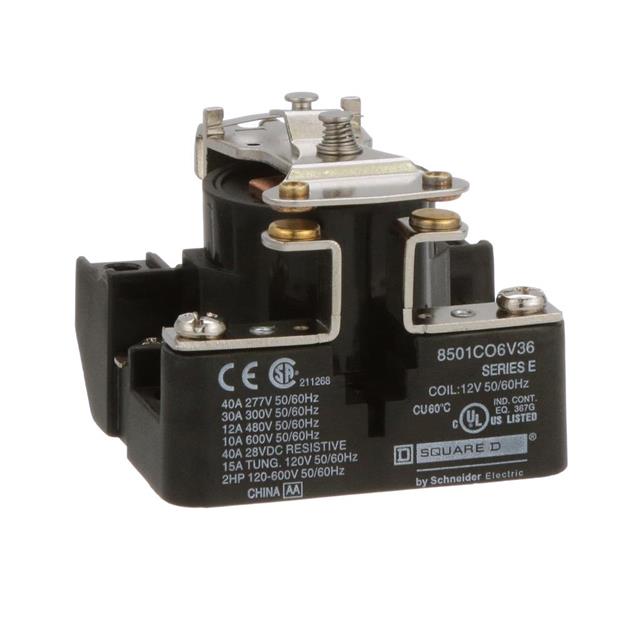

8501CO6V36
ObsoleteSQUARE D BY SCHNEIDER ELECTRIC
RELAY 600VAC 10AMP TYPE C -OPTIONS ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
8501CO6V36
ObsoleteSQUARE D BY SCHNEIDER ELECTRIC
RELAY 600VAC 10AMP TYPE C -OPTIONS ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8501CO6V36 |
|---|---|
| Coil Type | Non Latching |
| Coil Voltage | 12 VAC/DC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 30 A |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -30 ░C |
| Relay Type | General Purpose |
| Switching Voltage | 600 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Each | 1 | $ 48.14 | |
| 5 | $ 44.29 | |||
| 10 | $ 41.40 | |||
| 25 | $ 38.03 | |||
| 50 | $ 36.59 | |||
| 100 | $ 34.91 | |||
| 250 | $ 32.50 | |||
Description
General part information
8501CO Series
General Purpose Relay SPST-NO (1 Form A) 12VAC Coil Chassis Mount
