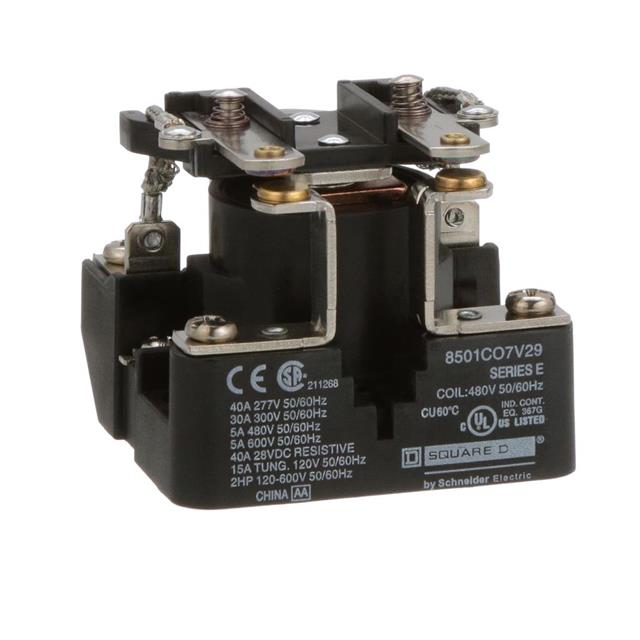

8501CO7V29

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY 600VAC 5AMP TYPE C -OPTIONS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

8501CO7V29

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY 600VAC 5AMP TYPE C -OPTIONS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8501CO7V29

Coil Type	Non Latching
Coil Voltage	480 VAC
Contact Form	DPST-NO (2 Form A)
Contact Rating (Current)	30 A
Mounting Type	Chassis Mount
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-30 ░C
Relay Type	General Purpose
Switching Voltage	600 VAC
Termination Style	Screw Terminal

8501CO Series

Part	Coil Type	Coil Voltage	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Rating (Current)	Switching Voltage	Termination Style	Relay Type	Approval Agency
SQUARE D BY SCHNEIDER ELECTRIC 8501CO7V29	Non Latching	480 VAC	DPST-NO (2 Form A)	50 °C	-30 ░C	Chassis Mount	30 A	600 VAC	Screw Terminal	General Purpose
SQUARE D BY SCHNEIDER ELECTRIC 8501CO7V20	Non Latching	120 VAC	DPST-NO (2 Form A)	50 °C	-30 ░C	Chassis Mount	30 A	600 VAC	Screw Terminal	General Purpose
SQUARE D BY SCHNEIDER ELECTRIC 8501CO16V24	Non Latching	240 VAC	DPDT (2 Form C)	50 °C	-30 ░C	Chassis Mount	30 A	600 VAC	Screw Terminal	General Purpose	CE CSA UL
SQUARE D BY SCHNEIDER ELECTRIC 8501CO6V36	Non Latching	12 VAC/DC	SPST-NO (1 Form A)	50 °C	-30 ░C	Chassis Mount	30 A	600 VAC	Screw Terminal	General Purpose
SQUARE D BY SCHNEIDER ELECTRIC 8501CO16V20	Non Latching	120 VAC	DPDT (2 Form C)	50 °C	-30 ░C	Chassis Mount	30 A	600 VAC	Screw Terminal	General Purpose
SQUARE D BY SCHNEIDER ELECTRIC 8501CO16V29	Non Latching	480 VAC	DPDT (2 Form C)	50 °C	-30 ░C	Chassis Mount	30 A	600 VAC	Screw Terminal	General Purpose
SQUARE D BY SCHNEIDER ELECTRIC 8501CO7V14	Non Latching	24 VAC	DPST-NO (2 Form A)	50 °C	-30 ░C	Chassis Mount	30 A	600 VAC	Screw Terminal	General Purpose
SQUARE D BY SCHNEIDER ELECTRIC 8501CO6V04	Non Latching	277 VAC	SPST-NO (1 Form A)	50 °C	-30 ░C	Chassis Mount	30 A	600 VAC	Screw Terminal	General Purpose
SQUARE D BY SCHNEIDER ELECTRIC 8501CO15V24	Non Latching	240 VAC	SPDT (1 Form C)	50 °C	-30 ░C	Chassis Mount	30 A	600 VAC	Screw Terminal	General Purpose
SQUARE D BY SCHNEIDER ELECTRIC 8501CO6V24	Non Latching	240 VAC	SPST-NO (1 Form A)	50 °C	-30 ░C	Chassis Mount	30 A	600 VAC	Screw Terminal	General Purpose

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 87.87
Newark	Each	1	$ 71.33
		5	$ 66.07
		10	$ 63.07
		25	$ 57.06
		50	$ 53.31
		100	$ 50.31
		250	$ 48.81

Description

General part information

8501CO Series

General Purpose Relay DPST-NO (2 Form A) 480VAC Coil Chassis Mount

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
