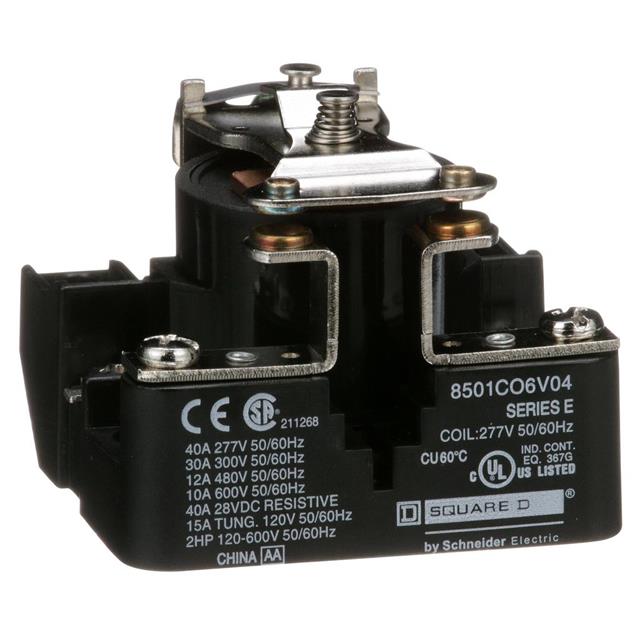

8501CO6V04

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY 600VAC 10AMP TYPE C -OPTIONS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Relays and Timers +2

8501CO6V04

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY 600VAC 10AMP TYPE C -OPTIONS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Relays and Timers +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8501CO6V04

Coil Type	Non Latching
Coil Voltage	277 VAC
Contact Form	SPST-NO (1 Form A)
Contact Rating (Current)	30 A
Mounting Type	Chassis Mount
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-30 ░C
Relay Type	General Purpose
Switching Voltage	600 VAC
Termination Style	Screw Terminal

8501CO Series

Part	Coil Type	Coil Voltage	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Rating (Current)	Switching Voltage	Termination Style	Relay Type	Approval Agency
SQUARE D BY SCHNEIDER ELECTRIC 8501CO7V29	Non Latching	480 VAC	DPST-NO (2 Form A)	50 °C	-30 ░C	Chassis Mount	30 A	600 VAC	Screw Terminal	General Purpose
SQUARE D BY SCHNEIDER ELECTRIC 8501CO7V20	Non Latching	120 VAC	DPST-NO (2 Form A)	50 °C	-30 ░C	Chassis Mount	30 A	600 VAC	Screw Terminal	General Purpose
SQUARE D BY SCHNEIDER ELECTRIC 8501CO16V24	Non Latching	240 VAC	DPDT (2 Form C)	50 °C	-30 ░C	Chassis Mount	30 A	600 VAC	Screw Terminal	General Purpose	CE CSA UL
SQUARE D BY SCHNEIDER ELECTRIC 8501CO6V36	Non Latching	12 VAC/DC	SPST-NO (1 Form A)	50 °C	-30 ░C	Chassis Mount	30 A	600 VAC	Screw Terminal	General Purpose
SQUARE D BY SCHNEIDER ELECTRIC 8501CO16V20	Non Latching	120 VAC	DPDT (2 Form C)	50 °C	-30 ░C	Chassis Mount	30 A	600 VAC	Screw Terminal	General Purpose
SQUARE D BY SCHNEIDER ELECTRIC 8501CO16V29	Non Latching	480 VAC	DPDT (2 Form C)	50 °C	-30 ░C	Chassis Mount	30 A	600 VAC	Screw Terminal	General Purpose
SQUARE D BY SCHNEIDER ELECTRIC 8501CO7V14	Non Latching	24 VAC	DPST-NO (2 Form A)	50 °C	-30 ░C	Chassis Mount	30 A	600 VAC	Screw Terminal	General Purpose
SQUARE D BY SCHNEIDER ELECTRIC 8501CO6V04	Non Latching	277 VAC	SPST-NO (1 Form A)	50 °C	-30 ░C	Chassis Mount	30 A	600 VAC	Screw Terminal	General Purpose
SQUARE D BY SCHNEIDER ELECTRIC 8501CO15V24	Non Latching	240 VAC	SPDT (1 Form C)	50 °C	-30 ░C	Chassis Mount	30 A	600 VAC	Screw Terminal	General Purpose
SQUARE D BY SCHNEIDER ELECTRIC 8501CO6V24	Non Latching	240 VAC	SPST-NO (1 Form A)	50 °C	-30 ░C	Chassis Mount	30 A	600 VAC	Screw Terminal	General Purpose

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 56.34
		10	$ 53.38
Newark	Each	1	$ 48.14
		1	$ 48.14
		5	$ 44.29
		5	$ 44.29
		10	$ 41.40
		10	$ 41.40
		25	$ 38.03
		25	$ 38.03
		50	$ 36.59
		50	$ 36.59
		100	$ 34.91
		100	$ 34.91
		250	$ 32.50
		250	$ 32.50

Description

General part information

8501CO Series

General Purpose Relay SPST-NO (1 Form A) 277VAC Coil Chassis Mount

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

Relays and Timers

Datasheet

General Purpose Relays

Datasheet
