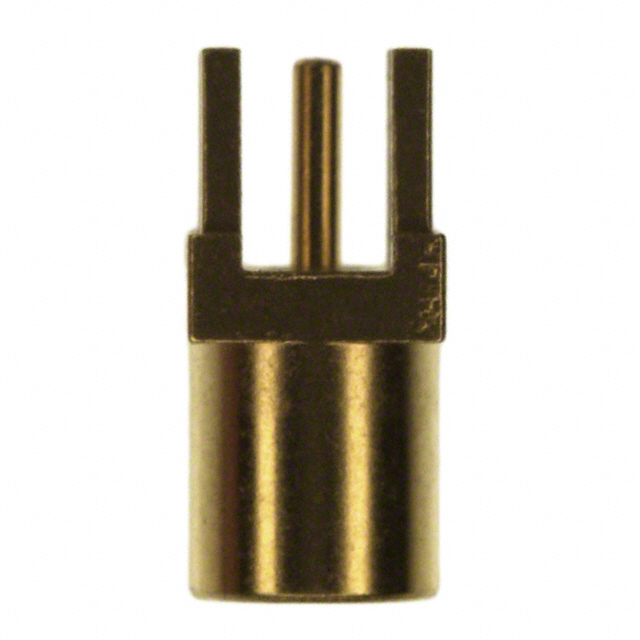

908-NM22106

Active

Amphenol RF

RF / COAXIAL CONNECTOR, MMCX COAXIAL, STRAIGHT JACK, SOLDER, 50 OHM, BERYLLIUM COPPER

Deep-Dive with AI

Search across all available documentation for this part.

908-NM22106

Active

Amphenol RF

RF / COAXIAL CONNECTOR, MMCX COAXIAL, STRAIGHT JACK, SOLDER, 50 OHM, BERYLLIUM COPPER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	908-NM22106

Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Non-Magnetic
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

908-NM Series

Part	Center Contact Plating	Housing Color	Contact Termination	Center Contact Material	Fastening Type	Dielectric Material	Shield Termination	Includes	Number of Ports	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Body Finish	Features	Frequency - Max [Max]	Impedance	Body Material	Mating Cycles	Connector Type	Connector Style
Amphenol RF 908-NM41200	Gold	Silver	Solder	Beryllium Copper	Snap-On	Polytetrafluoroethylene (PTFE)	Crimp	1 Connector 1 Contact 1 Ferrule	1	178A 178B 196 196A M17/93-RG178 RG-178	-65 ░C	165 °C	Free Hanging (In-Line)	White Bronze	Non-Magnetic	6000 MHz	50 Ohms	Beryllium Copper	500	Male Pin Plug	MMCX
Amphenol RF 908-NM43300	Gold	Silver	Solder	Beryllium Copper	Snap-On	Polytetrafluoroethylene (PTFE)	Crimp	1 Connector 1 End Cap 1 Ferrule	1	188 188A 316 LMR-100 M17/119-RG174 RG-174	-65 ░C	165 °C	Free Hanging (In-Line) Right Angle	White Bronze	Non-Magnetic	6000 MHz	50 Ohms	Beryllium Copper	500	Male Pin Plug	MMCX
Amphenol RF 908-NM41300	Gold	Silver	Solder	Beryllium Copper	Snap-On	Polytetrafluoroethylene (PTFE)	Crimp	1 Connector 1 Contact 1 Ferrule	1	188 188A 316 LMR-100 M17/119-RG174 RG-174	-65 ░C	165 °C	Free Hanging (In-Line)	White Bronze	Non-Magnetic	6000 MHz	50 Ohms	Beryllium Copper	500	Male Pin Plug	MMCX
Amphenol RF 908-NM22106	Gold	Gold	Solder	Beryllium Copper	Snap-On	Polytetrafluoroethylene (PTFE)	Solder		1		-65 ░C	165 °C	Through Hole	Gold	Non-Magnetic	6000 MHz	50 Ohms	Beryllium Copper	500	Female Socket Jack	MMCX
Amphenol RF 908-NM24100	Gold	Gold	Solder	Beryllium Copper	Snap-On	Polytetrafluoroethylene (PTFE)	Solder		1		-65 ░C	165 °C	Through Hole Right Angle	Gold	Non-Magnetic	6000 MHz	50 Ohms	Beryllium Copper	500	Female Socket Jack	MMCX
Amphenol RF 908-NM22109	Gold	Gold	Solder	Beryllium Copper	Snap-On	Polytetrafluoroethylene (PTFE)	Solder		1		-65 ░C	165 °C	Surface Mount	Gold	Non-Magnetic	6000 MHz	50 Ohms	Beryllium Copper	500	Female Socket Jack	MMCX

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.88
		10	$ 9.25
		25	$ 8.67
		50	$ 8.26
		100	$ 7.86
		250	$ 7.37
		500	$ 7.02
		1000	$ 6.68
Newark	Each	1	$ 11.22
		5	$ 10.66
		10	$ 10.10
		25	$ 9.51
		50	$ 9.27
		100	$ 9.02
		250	$ 8.05

Description

General part information

908-NM Series

The 908-NM22106 is a non-magnetic through-hole PCB MMCX Straight Jack made of gold-plated beryllium copper body with contacts and a PTFE insulator.
