908-NM24100
ActiveAmphenol RF

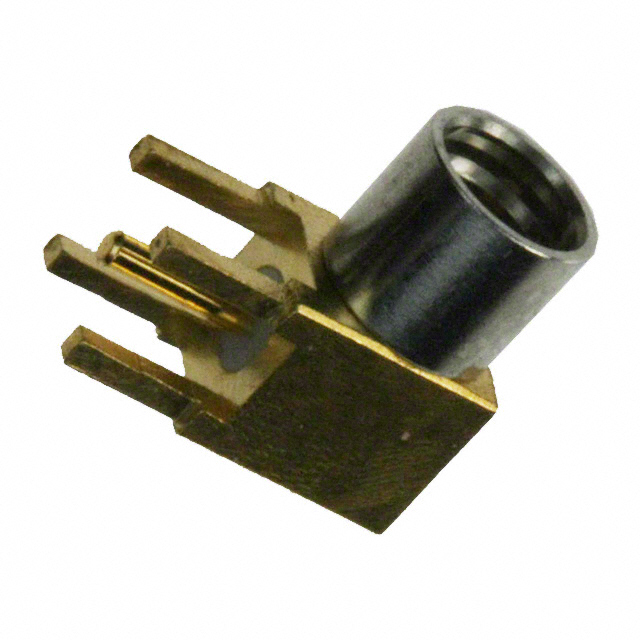

CONN MMCX JACK R/A 50 OHM PCB
Deep-Dive with AI
Search across all available documentation for this part.
908-NM24100
ActiveAmphenol RF
CONN MMCX JACK R/A 50 OHM PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 908-NM24100 |
|---|---|
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | MMCX |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Features | Non-Magnetic |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
908-NM Series
| Part | Center Contact Plating | Housing Color | Contact Termination | Center Contact Material | Fastening Type | Dielectric Material | Shield Termination | Includes | Number of Ports | Cable Group | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Body Finish | Features | Frequency - Max [Max] | Impedance | Body Material | Mating Cycles | Connector Type | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Gold | Silver | Solder | Beryllium Copper | Snap-On | Polytetrafluoroethylene (PTFE) | Crimp | 1 Connector 1 Contact 1 Ferrule | 1 | 178A 178B 196 196A M17/93-RG178 RG-178 | -65 ░C | 165 °C | Free Hanging (In-Line) | White Bronze | Non-Magnetic | 6000 MHz | 50 Ohms | Beryllium Copper | 500 | Male Pin Plug | MMCX |
Amphenol RF | Gold | Silver | Solder | Beryllium Copper | Snap-On | Polytetrafluoroethylene (PTFE) | Crimp | 1 Connector 1 End Cap 1 Ferrule | 1 | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | -65 ░C | 165 °C | Free Hanging (In-Line) Right Angle | White Bronze | Non-Magnetic | 6000 MHz | 50 Ohms | Beryllium Copper | 500 | Male Pin Plug | MMCX |
Amphenol RF | Gold | Silver | Solder | Beryllium Copper | Snap-On | Polytetrafluoroethylene (PTFE) | Crimp | 1 Connector 1 Contact 1 Ferrule | 1 | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | -65 ░C | 165 °C | Free Hanging (In-Line) | White Bronze | Non-Magnetic | 6000 MHz | 50 Ohms | Beryllium Copper | 500 | Male Pin Plug | MMCX |
Amphenol RF | Gold | Gold | Solder | Beryllium Copper | Snap-On | Polytetrafluoroethylene (PTFE) | Solder | 1 | -65 ░C | 165 °C | Through Hole | Gold | Non-Magnetic | 6000 MHz | 50 Ohms | Beryllium Copper | 500 | Female Socket Jack | MMCX | ||
Amphenol RF | Gold | Gold | Solder | Beryllium Copper | Snap-On | Polytetrafluoroethylene (PTFE) | Solder | 1 | -65 ░C | 165 °C | Through Hole Right Angle | Gold | Non-Magnetic | 6000 MHz | 50 Ohms | Beryllium Copper | 500 | Female Socket Jack | MMCX | ||
Amphenol RF | Gold | Gold | Solder | Beryllium Copper | Snap-On | Polytetrafluoroethylene (PTFE) | Solder | 1 | -65 ░C | 165 °C | Surface Mount | Gold | Non-Magnetic | 6000 MHz | 50 Ohms | Beryllium Copper | 500 | Female Socket Jack | MMCX |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 30.52 | |
| 10 | $ 23.55 | |||
| 25 | $ 21.34 | |||
| 50 | $ 19.84 | |||
| 100 | $ 18.49 | |||
| 250 | $ 16.89 | |||
| 500 | $ 15.81 | |||
Description
General part information
908-NM Series
MMCX Connector Jack, Female Socket 50 Ohms Through Hole, Right Angle Solder
