908-NM43300
ActiveAmphenol RF
CONN MMCX PLUG R/A 50 OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
908-NM43300
ActiveAmphenol RF
CONN MMCX PLUG R/A 50 OHM SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 908-NM43300 |
|---|---|
| Body Finish | White Bronze |
| Body Material | Beryllium Copper |
| Cable Group | 188, 188A, 316, LMR-100, M17/119-RG174, RG-174 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | MMCX |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Features | Non-Magnetic |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |

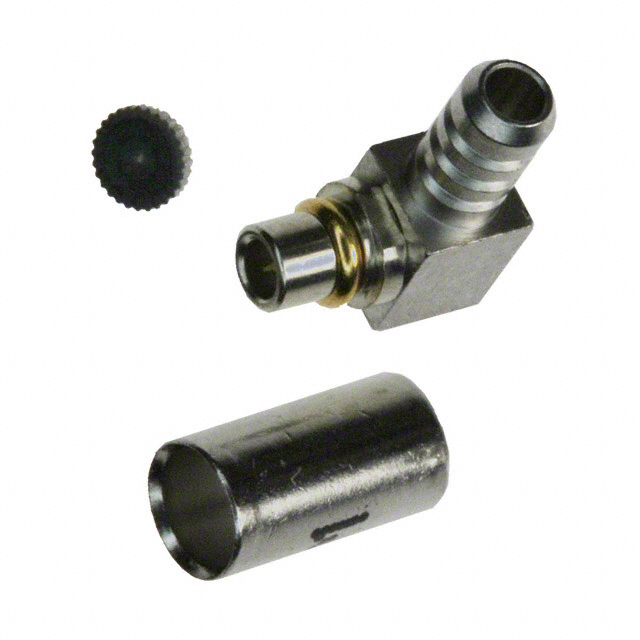

| Includes | 1 Connector, 1 Ferrule, 1 End Cap |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.25 | |
| 10 | $ 16.69 | |||
| 25 | $ 15.82 | |||
| 50 | $ 15.59 | |||
| 100 | $ 13.75 | |||
| 250 | $ 12.84 | |||
| 500 | $ 12.56 | |||
Description
General part information
908-NM Series
MMCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
