7012-1301
ActiveAmphenol SV Microwave

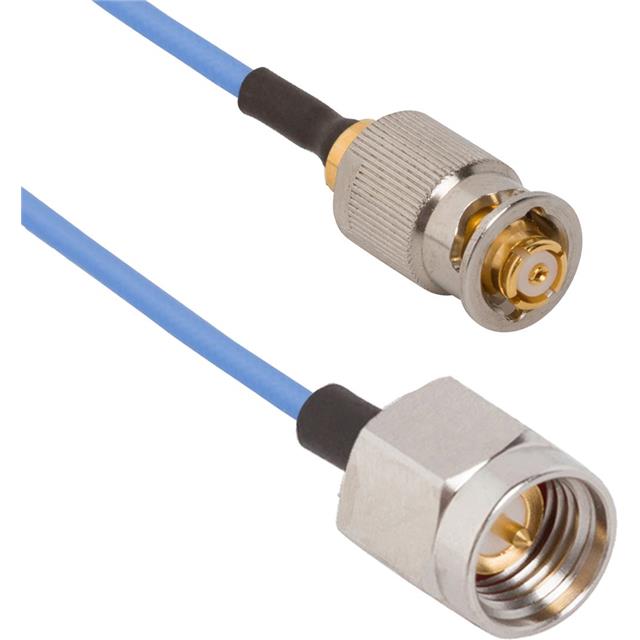

CBL ASSY SMA-SMP PLUG-JACK 6"
Deep-Dive with AI
Search across all available documentation for this part.
7012-1301
ActiveAmphenol SV Microwave
CBL ASSY SMA-SMP PLUG-JACK 6"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7012-1301 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMP Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type | 0.047" Flexible Cable |
| Color | Blue |
| Features | Shielded |
| Frequency - Max [Max] | 18 GHz |
| Length | 152.4 mm |
| Length | 6 in |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Overall Impedance | 50 Ohms |
| Style | SMA to SMP |
7012 Series
| Part | Length | Length | Operating Temperature [Min] | Operating Temperature [Max] | Features | 2nd Contact Gender | Overall Impedance | 1st Connector | 1st Contact Gender | 2nd Connector Mounting Type | Color | 2nd Connector | Cable Type | 1st Connector Mounting Type | Style | Frequency - Max [Max] | 2nd Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol SV Microwave | 152.4 mm | 6 in | -65 ░C | 165 °C | Shielded | Female | 50 Ohms | SMA Plug | Male | Free Hanging (In-Line) | Blue | SMP Jack | 0.047" Flexible Cable | Free Hanging (In-Line) | SMA to SMP | 18 GHz | |
Amphenol SV Microwave | 152.4 mm | 6 in | -65 ░C | 165 °C | Shielded | Female | 50 Ohms | Right Angle SMP Jack | Female | Free Hanging (In-Line) | Blue | SMP Jack Right Angle | 0.047" Flexible Cable | Free Hanging (In-Line) | SMP to SMP | 26.5 GHz | |
Amphenol SV Microwave | 304.8 mm | 12 " | -65 ░C | 165 °C | Shielded | Female | 50 Ohms | SMA Plug | Male | Free Hanging (In-Line) | Blue | SMP Jack | TFlex-405 | Free Hanging (In-Line) | SMA to SMP | 18 GHz | |
Amphenol SV Microwave | 609.6 mm | 24 " | -65 ░C | 165 °C | Shielded | Female | 50 Ohms | SMA Plug | Male | Free Hanging (In-Line) | Blue | SMP Jack | TFlex-405 | Free Hanging (In-Line) | SMA to SMP | 18 GHz | |
Amphenol SV Microwave | 152.4 mm | 6 in | -65 ░C | 165 °C | Shielded | Male | 50 Ohms | Right Angle SMP Jack | Female | Free Hanging (In-Line) | Blue | 0.047" Flexible Cable | Free Hanging (In-Line) | SMP to 2.92mm | 40 GHz | 2.92 mm | |
Amphenol SV Microwave | 152.4 mm | 6 in | -65 ░C | 165 °C | Shielded | Female | 50 Ohms | SMP Jack | Female | Free Hanging (In-Line) | Blue | SMP Jack | TFlex-405 | Free Hanging (In-Line) | SMP to SMP | 40 GHz | |
Amphenol SV Microwave | 609.6 mm | 24 " | -65 ░C | 165 °C | Shielded | Female | 50 Ohms | SMP Jack | Female | Free Hanging (In-Line) | Blue | SMPM Jack | 0.047" Flexible Cable | Free Hanging (In-Line) | SMP to SMPM | 40 GHz | |
Amphenol SV Microwave | 152.4 mm | 6 in | -65 ░C | 165 °C | Shielded | Female | 50 Ohms | SMA Plug | Male | Free Hanging (In-Line) | Blue | SMA Jack | 0.047" Flexible Cable | Free Hanging (In-Line) | SMA to SMP | 18 GHz | |
Amphenol SV Microwave | 609.6 mm | 24 " | -65 ░C | 165 °C | Shielded | Male | 50 Ohms | SMP Jack | Female | Free Hanging (In-Line) | Blue | 0.047" Flexible Cable | Free Hanging (In-Line) | SMP to 2.92mm | 40 GHz | 2.92 mm | |
Amphenol SV Microwave | 304.8 mm | 12 " | -65 ░C | 165 °C | Shielded | Female | 50 Ohms | SMA Plug | Male | Free Hanging (In-Line) | Blue | SMP Jack | TFlex-405 | Free Hanging (In-Line) | SMA to SMP | 18 GHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 25 | $ 143.81 | |
Description
General part information
7012 Series
Cable Assembly Coaxial SMA to SMP 0.047" Flexible Cable 6.000" (152.40mm)
Documents
Technical documentation and resources
No documents available
