7012-1087

Active

Amphenol SV Microwave

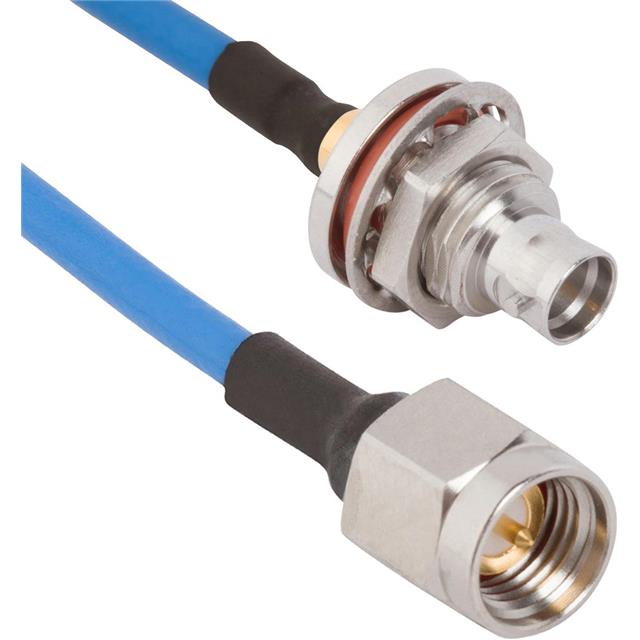

CBL ASSY SMA-SMP PLUG-JACK 12"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

7012-1087

Active

Amphenol SV Microwave

CBL ASSY SMA-SMP PLUG-JACK 12"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	7012-1087

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMP Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	TFlex-405
Color	Blue
Features	Shielded
Frequency - Max [Max]	18 GHz
Length	12 "
Length	304.8 mm
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Overall Impedance	50 Ohms
Style	SMA to SMP

7012 Series

Part	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Features	2nd Contact Gender	Overall Impedance	1st Connector	1st Contact Gender	2nd Connector Mounting Type	Color	2nd Connector	Cable Type	1st Connector Mounting Type	Style	Frequency - Max [Max]	2nd Connector
Amphenol SV Microwave 7012-1301	152.4 mm	6 in	-65 ░C	165 °C	Shielded	Female	50 Ohms	SMA Plug	Male	Free Hanging (In-Line)	Blue	SMP Jack	0.047" Flexible Cable	Free Hanging (In-Line)	SMA to SMP	18 GHz
Amphenol SV Microwave 7012-0802	152.4 mm	6 in	-65 ░C	165 °C	Shielded	Female	50 Ohms	Right Angle SMP Jack	Female	Free Hanging (In-Line)	Blue	SMP Jack Right Angle	0.047" Flexible Cable	Free Hanging (In-Line)	SMP to SMP	26.5 GHz
Amphenol SV Microwave 7012-1322	304.8 mm	12 "	-65 ░C	165 °C	Shielded	Female	50 Ohms	SMA Plug	Male	Free Hanging (In-Line)	Blue	SMP Jack	TFlex-405	Free Hanging (In-Line)	SMA to SMP	18 GHz
Amphenol SV Microwave 7012-1300	609.6 mm	24 "	-65 ░C	165 °C	Shielded	Female	50 Ohms	SMA Plug	Male	Free Hanging (In-Line)	Blue	SMP Jack	TFlex-405	Free Hanging (In-Line)	SMA to SMP	18 GHz
Amphenol SV Microwave 7012-1066	152.4 mm	6 in	-65 ░C	165 °C	Shielded	Male	50 Ohms	Right Angle SMP Jack	Female	Free Hanging (In-Line)	Blue		0.047" Flexible Cable	Free Hanging (In-Line)	SMP to 2.92mm	40 GHz	2.92 mm
Amphenol SV Microwave 7012-1291	152.4 mm	6 in	-65 ░C	165 °C	Shielded	Female	50 Ohms	SMP Jack	Female	Free Hanging (In-Line)	Blue	SMP Jack	TFlex-405	Free Hanging (In-Line)	SMP to SMP	40 GHz
Amphenol SV Microwave 7012-1296	609.6 mm	24 "	-65 ░C	165 °C	Shielded	Female	50 Ohms	SMP Jack	Female	Free Hanging (In-Line)	Blue	SMPM Jack	0.047" Flexible Cable	Free Hanging (In-Line)	SMP to SMPM	40 GHz
Amphenol SV Microwave 7012-1324	152.4 mm	6 in	-65 ░C	165 °C	Shielded	Female	50 Ohms	SMA Plug	Male	Free Hanging (In-Line)	Blue	SMA Jack	0.047" Flexible Cable	Free Hanging (In-Line)	SMA to SMP	18 GHz
Amphenol SV Microwave 7012-1286	609.6 mm	24 "	-65 ░C	165 °C	Shielded	Male	50 Ohms	SMP Jack	Female	Free Hanging (In-Line)	Blue		0.047" Flexible Cable	Free Hanging (In-Line)	SMP to 2.92mm	40 GHz	2.92 mm
Amphenol SV Microwave 7012-1087	304.8 mm	12 "	-65 ░C	165 °C	Shielded	Female	50 Ohms	SMA Plug	Male	Free Hanging (In-Line)	Blue	SMP Jack	TFlex-405	Free Hanging (In-Line)	SMA to SMP	18 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 165.03

Description

General part information

7012 Series

Cable Assembly Coaxial SMA to SMP TFlex-405 12.00" (304.80mm)

Documents

Technical documentation and resources
