7012-1286

Active

Amphenol SV Microwave

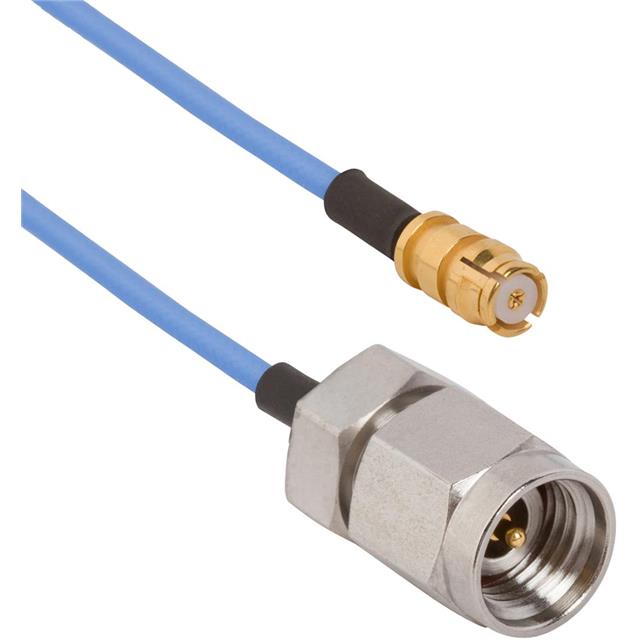

CABLE ASSEMBLY 0.047 STANDARD FLEX-TRA 0.609M SMP TO 2.92MM RF F-M BAG

Deep-Dive with AI

Search across all available documentation for this part.

7012-1286

Active

Amphenol SV Microwave

CABLE ASSEMBLY 0.047 STANDARD FLEX-TRA 0.609M SMP TO 2.92MM RF F-M BAG

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	7012-1286

1st Connector	SMP Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	2.92 mm
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	0.047" Flexible Cable
Color	Blue
Features	Shielded
Frequency - Max [Max]	40 GHz
Length	24 "
Length	609.6 mm
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Overall Impedance	50 Ohms
Style	SMP to 2.92mm

7012 Series

Part	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Features	2nd Contact Gender	Overall Impedance	1st Connector	1st Contact Gender	2nd Connector Mounting Type	Color	2nd Connector	Cable Type	1st Connector Mounting Type	Style	Frequency - Max [Max]	2nd Connector
Amphenol SV Microwave 7012-1301	152.4 mm	6 in	-65 ░C	165 °C	Shielded	Female	50 Ohms	SMA Plug	Male	Free Hanging (In-Line)	Blue	SMP Jack	0.047" Flexible Cable	Free Hanging (In-Line)	SMA to SMP	18 GHz
Amphenol SV Microwave 7012-0802	152.4 mm	6 in	-65 ░C	165 °C	Shielded	Female	50 Ohms	Right Angle SMP Jack	Female	Free Hanging (In-Line)	Blue	SMP Jack Right Angle	0.047" Flexible Cable	Free Hanging (In-Line)	SMP to SMP	26.5 GHz
Amphenol SV Microwave 7012-1322	304.8 mm	12 "	-65 ░C	165 °C	Shielded	Female	50 Ohms	SMA Plug	Male	Free Hanging (In-Line)	Blue	SMP Jack	TFlex-405	Free Hanging (In-Line)	SMA to SMP	18 GHz
Amphenol SV Microwave 7012-1300	609.6 mm	24 "	-65 ░C	165 °C	Shielded	Female	50 Ohms	SMA Plug	Male	Free Hanging (In-Line)	Blue	SMP Jack	TFlex-405	Free Hanging (In-Line)	SMA to SMP	18 GHz
Amphenol SV Microwave 7012-1066	152.4 mm	6 in	-65 ░C	165 °C	Shielded	Male	50 Ohms	Right Angle SMP Jack	Female	Free Hanging (In-Line)	Blue		0.047" Flexible Cable	Free Hanging (In-Line)	SMP to 2.92mm	40 GHz	2.92 mm
Amphenol SV Microwave 7012-1291	152.4 mm	6 in	-65 ░C	165 °C	Shielded	Female	50 Ohms	SMP Jack	Female	Free Hanging (In-Line)	Blue	SMP Jack	TFlex-405	Free Hanging (In-Line)	SMP to SMP	40 GHz
Amphenol SV Microwave 7012-1296	609.6 mm	24 "	-65 ░C	165 °C	Shielded	Female	50 Ohms	SMP Jack	Female	Free Hanging (In-Line)	Blue	SMPM Jack	0.047" Flexible Cable	Free Hanging (In-Line)	SMP to SMPM	40 GHz
Amphenol SV Microwave 7012-1324	152.4 mm	6 in	-65 ░C	165 °C	Shielded	Female	50 Ohms	SMA Plug	Male	Free Hanging (In-Line)	Blue	SMA Jack	0.047" Flexible Cable	Free Hanging (In-Line)	SMA to SMP	18 GHz
Amphenol SV Microwave 7012-1286	609.6 mm	24 "	-65 ░C	165 °C	Shielded	Male	50 Ohms	SMP Jack	Female	Free Hanging (In-Line)	Blue		0.047" Flexible Cable	Free Hanging (In-Line)	SMP to 2.92mm	40 GHz	2.92 mm
Amphenol SV Microwave 7012-1087	304.8 mm	12 "	-65 ░C	165 °C	Shielded	Female	50 Ohms	SMA Plug	Male	Free Hanging (In-Line)	Blue	SMP Jack	TFlex-405	Free Hanging (In-Line)	SMA to SMP	18 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 222.85
		10	$ 174.51
		25	$ 159.26
		50	$ 148.99

Description

General part information

7012 Series

Cable Assembly Coaxial SMP to 2.92mm 0.047" Flexible Cable 24.00" (609.60mm)

Documents

Technical documentation and resources

No documents available
