0347930082
ActiveMolex

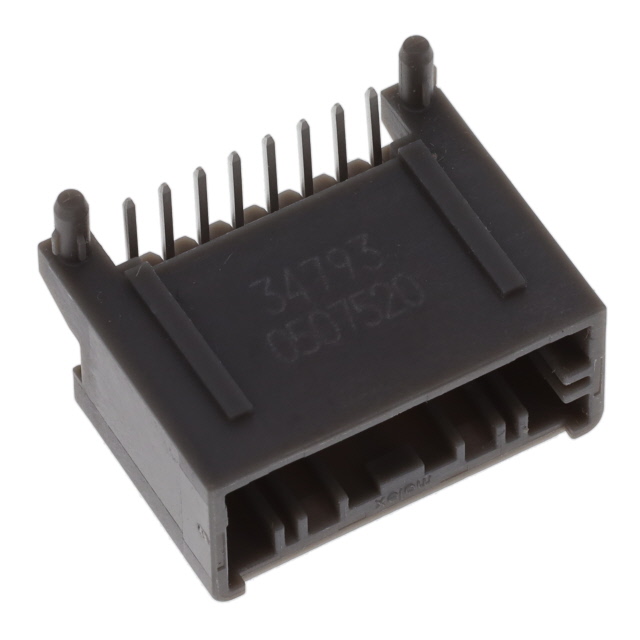

CONN HEADER R/A 8POS 2MM
Deep-Dive with AI
Search across all available documentation for this part.
0347930082
ActiveMolex
CONN HEADER R/A 8POS 2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0347930082 |
|---|---|
| Applications | Automotive |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 5.55 mm |
| Contact Length - Mating | 0.218 in |
| Contact Length - Post | 2.79 mm |
| Contact Length - Post [x] | 0.11 in |
| Contact Material | Brass |
| Contact Shape | Rectangular |
| Contact Type | Male Blade |
| Fastening Type | Latch Lock |
| Features | Board Guide |
| Insulation Color | Gray |
| Insulation Height [z] | 0.372 in |
| Insulation Height [z] | 9.44 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.89 | |
| 10 | $ 1.43 | |||
| 80 | $ 1.14 | |||
| 440 | $ 0.97 | |||
| 945 | $ 0.91 | |||
| 4900 | $ 0.81 | |||
| 10000 | $ 0.78 | |||
Description
General part information
034793 Series
Connector Header Through Hole, Right Angle 8 position 0.079" (2.00mm)
Documents
Technical documentation and resources
No documents available
