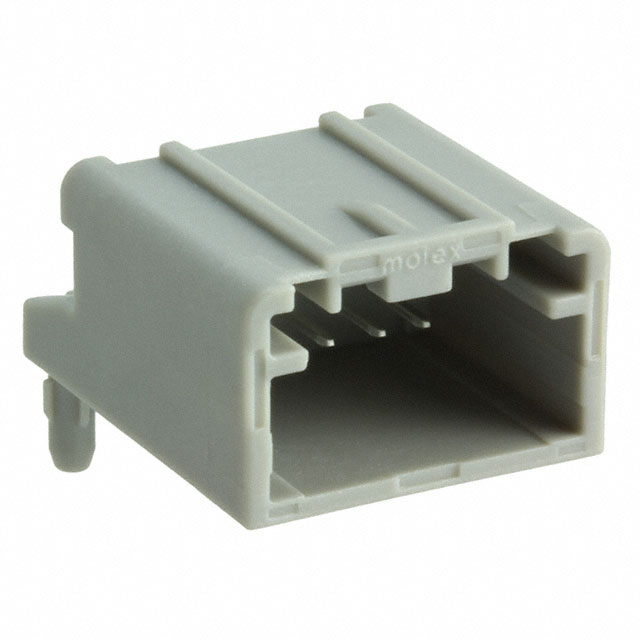

0347930041
ActiveMolex
CONN HEADER R/A 4POS 2MM
Deep-Dive with AI
Search across all available documentation for this part.
Documents3479(1-3) Series Spec
0347930041
ActiveMolex
CONN HEADER R/A 4POS 2MM
Deep-Dive with AI
Documents3479(1-3) Series Spec
Technical Specifications
Parameters and characteristics for this part
| Specification | 0347930041 |
|---|---|
| Applications | Automotive |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 5.55 mm |
| Contact Length - Mating | 0.218 in |
| Contact Length - Post | 2.79 mm |
| Contact Length - Post [x] | 0.11 in |
| Contact Material | Brass |
| Contact Shape | Rectangular |
| Contact Type | Male Blade |
| Fastening Type | Latch Lock |
| Features | Board Guide |
| Insulation Color | Gray |
| Insulation Height [z] | 0.372 in |
| Insulation Height [z] | 9.44 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.82 | |
| 10 | $ 1.55 | |||
| 80 | $ 1.28 | |||
| 1656 | $ 0.98 | |||
| 4968 | $ 0.89 | |||
Description
General part information
034793 Series
Connector Header Through Hole, Right Angle 4 position 0.079" (2.00mm)
