0347938081

Active

Molex

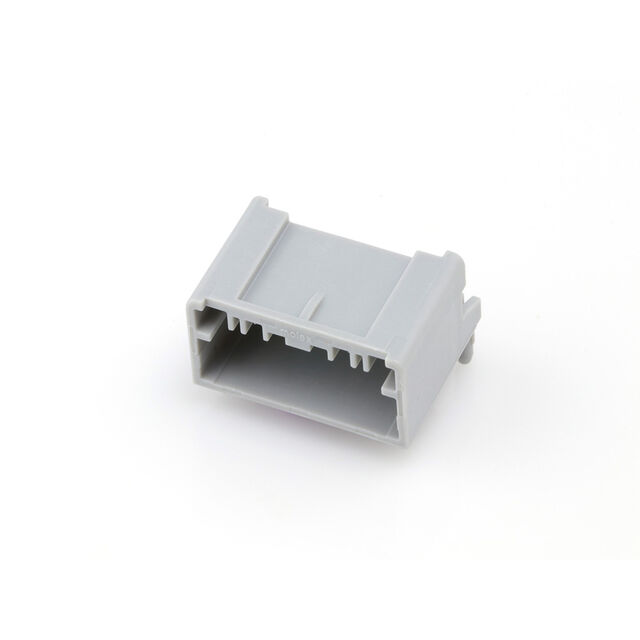

CONN SHROUDED HEADER (4 SIDES) HDR 8 POS 2MM SOLDER RA SIDE ENTRY THRU-HOLE T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0347938081

Active

Molex

CONN SHROUDED HEADER (4 SIDES) HDR 8 POS 2MM SOLDER RA SIDE ENTRY THRU-HOLE T/R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0347938081

Applications	Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	5.55 mm
Contact Length - Mating	0.218 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Brass
Contact Shape	Rectangular
Contact Type	Male Blade
Fastening Type	Latch Lock
Features	Board Guide
Insulation Color	Gray
Insulation Height [z]	0.372 in
Insulation Height [z]	9.44 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

034793 Series

Part	Contact Length - Mating	Contact Length - Mating	Number of Rows	Fastening Type	Insulation Height [z]	Insulation Height [z]	Termination	Contact Finish - Post	Applications	Features	Contact Length - Post [x]	Contact Length - Post	Connector Type	Contact Type	Contact Shape	Number of Positions	Mounting Type	Shrouding	Style	Contact Material	Pitch - Mating [x]	Pitch - Mating [x]	Material Flammability Rating	Number of Positions Loaded	Insulation Color
Molex 0347930080	5.55 mm	0.218 in	1	Latch Lock	0.372 in	9.44 mm	Solder	Tin	Automotive	Board Guide	0.11 in	2.79 mm	Header	Male Blade	Rectangular	8	Through Hole Right Angle	Shrouded - 4 Wall	Board to Cable/Wire	Brass	0.079 in	2 mm	UL94 V-0	All	Black
Molex 0347930081	5.55 mm	0.218 in	1	Latch Lock	0.372 in	9.44 mm	Solder	Tin	Automotive	Board Guide	0.11 in	2.79 mm	Header	Male Blade	Rectangular	8	Through Hole Right Angle	Shrouded - 4 Wall	Board to Cable/Wire	Brass	0.079 in	2 mm	UL94 V-0	All	Gray
Molex 0347938043	5.55 mm	0.218 in	1	Latch Lock	0.372 in	9.44 mm	Solder	Tin	Automotive	Board Guide	0.11 in	2.79 mm	Header	Male Blade	Rectangular	4	Through Hole Right Angle	Shrouded - 4 Wall	Board to Cable/Wire	Brass	0.079 in	2 mm	UL94 V-0	All	Green
Molex 0347938041	5.55 mm	0.218 in	1	Latch Lock	0.372 in	9.44 mm	Solder	Tin	Automotive	Board Guide	0.11 in	2.79 mm	Header	Male Blade	Rectangular	4	Through Hole Right Angle	Shrouded - 4 Wall	Board to Cable/Wire	Brass	0.079 in	2 mm	UL94 V-0	All	Gray
Molex 0347938081	5.55 mm	0.218 in	1	Latch Lock	0.372 in	9.44 mm	Solder	Tin	Automotive	Board Guide	0.11 in	2.79 mm	Header	Male Blade	Rectangular	8	Through Hole Right Angle	Shrouded - 4 Wall	Board to Cable/Wire	Brass	0.079 in	2 mm	UL94 V-0	All	Gray
Molex 0347930040	5.55 mm	0.218 in	1	Latch Lock	0.372 in	9.44 mm	Solder	Tin	Automotive	Board Guide	0.11 in	2.79 mm	Header	Male Blade	Rectangular	4	Through Hole Right Angle	Shrouded - 4 Wall	Board to Cable/Wire	Brass	0.079 in	2 mm	UL94 V-0	All	Black
Molex 0347930041	5.55 mm	0.218 in	1	Latch Lock	0.372 in	9.44 mm	Solder	Tin	Automotive	Board Guide	0.11 in	2.79 mm	Header	Male Blade	Rectangular	4	Through Hole Right Angle	Shrouded - 4 Wall	Board to Cable/Wire	Brass	0.079 in	2 mm	UL94 V-0	All	Gray
Molex 0347930082	5.55 mm	0.218 in	1	Latch Lock	0.372 in	9.44 mm	Solder	Tin	Automotive	Board Guide	0.11 in	2.79 mm	Header	Male Blade	Rectangular	8	Through Hole Right Angle	Shrouded - 4 Wall	Board to Cable/Wire	Brass	0.079 in	2 mm	UL94 V-0	All	Gray
Molex 0347938042	5.55 mm	0.218 in	1	Latch Lock	0.372 in	9.44 mm	Solder	Tin	Automotive	Board Guide	0.11 in	2.79 mm	Header	Male Blade	Rectangular	4	Through Hole Right Angle	Shrouded - 4 Wall	Board to Cable/Wire	Brass	0.079 in	2 mm	UL94 V-0	All	Gray
Molex 0347939080

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1800	$ 1.37

Description

General part information

034793 Series

Connector Header Through Hole, Right Angle 8 position 0.079" (2.00mm)
