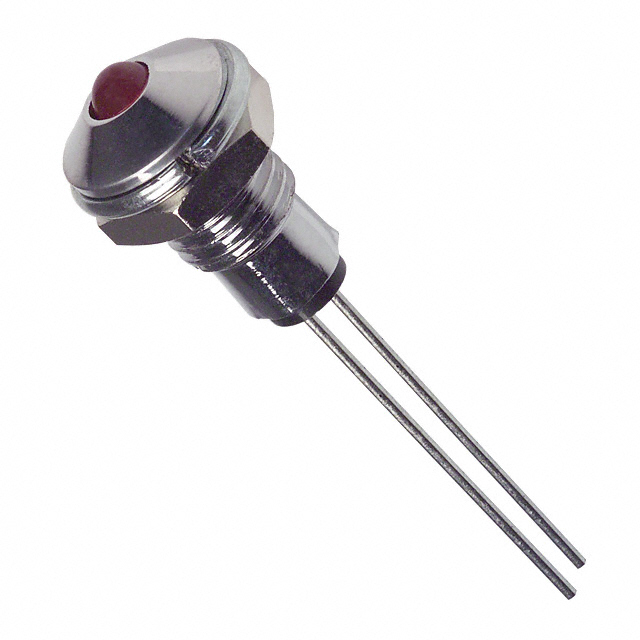

SSI-LXR3612SRD

Active

Lumex Opto/Components Inc.

LED 3MM SUPER RED DIFF PANEL MT

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED 3MM SUPER RED DIFF PANEL MT

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Millicandela Rating	Lens Transparency	Voltage	Type	Lens Style	Lens Color	Lens Size	Lens Size	Wavelength - Peak	Panel Cutout Shape	Lamp Color	Viewing Angle	Ratings	Current	Panel Cutout Dimensions	Panel Cutout Dimensions
Lumex Opto/Components Inc. SSI-LXR3612GD-450	Wire Leads - 18" (457.20mm)	30 mcd	Diffused	2.2 V	LED	Round with Domed Top	Green	3 mm	T-1	565 nm	Round	Green	60 °
Lumex Opto/Components Inc. SSI-LXR3612YD-150
Lumex Opto/Components Inc. SSI-LXR3612ID-150		30 mcd	Diffused	2 V	LED	Round with Domed Top	Red	3 mm	T-1	635 nm	Round	Red	60 °	DC	30 mA
Lumex Opto/Components Inc. SSI-LXR3612USBD150		60 mcd	Diffused	3.5 V	LED	Round with Domed Top	Blue	3 mm	T-1		Round	Blue	60 °
Lumex Opto/Components Inc. SSI-LXR3612GD		30 mcd	Diffused	2.2 V	LED	Round with Domed Top	Green	3 mm	T-1	565 nm	Round	Green	60 °		25 mA	6.1 mm	0.24 in
Lumex Opto/Components Inc. SSI-LXR3612SID		100 mcd	Diffused	2.1 V	LED	Round with Domed Top	Red	3 mm	T-1	636 nm	Round	Red	60 °		30 mA	6.1 mm	0.24 in
Lumex Opto/Components Inc. SSI-LXR3612SOD-150		100 mcd	Diffused	2.1 V	LED	Round with Domed Top	Orange	3 mm	T-1	610 nm	Round	Orange	60 °
Lumex Opto/Components Inc. SSI-LXR3612SRD		65 mcd	Diffused	1.8 V	LED	Round with Domed Top	Red	3 mm	T-1	660 nm	Round	Red	60 °		30 mA	6.1 mm	0.24 in
Lumex Opto/Components Inc. SSI-LXR3612ID-300	Wire Leads - 12" (304.80mm)	30 mcd	Diffused	2 V	LED	Round with Domed Top	Red	3 mm	T-1	635 nm	Round	Red	60 °		30 mA	6.1 mm	0.24 in
Lumex Opto/Components Inc. SSI-LXR3612GD5V150		15 mcd	Diffused	5 V	LED	Round with Domed Top	Green	3 mm	T-1	565 nm	Round	Green	60 °		12 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Panel Indicator Red Diffused 60° 1.8V 30mA
