SSI-LXR3612ID-150

Active

Lumex Opto/Components Inc.

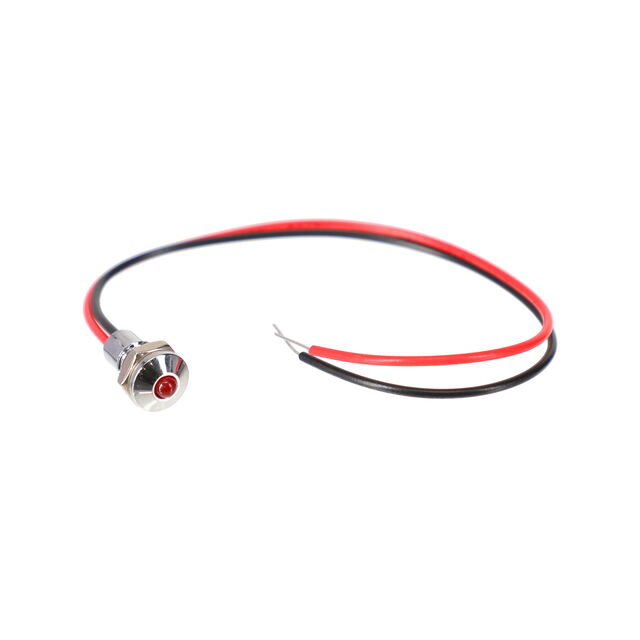

LED 3MM PANEL MNT W/24AWG LEADS

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED 3MM PANEL MNT W/24AWG LEADS

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Millicandela Rating	Lens Transparency	Voltage	Type	Lens Style	Lens Color	Lens Size	Lens Size	Wavelength - Peak	Panel Cutout Shape	Lamp Color	Viewing Angle	Ratings	Current	Panel Cutout Dimensions	Panel Cutout Dimensions
Lumex Opto/Components Inc. SSI-LXR3612GD-450	Wire Leads - 18" (457.20mm)	30 mcd	Diffused	2.2 V	LED	Round with Domed Top	Green	3 mm	T-1	565 nm	Round	Green	60 °
Lumex Opto/Components Inc. SSI-LXR3612YD-150
Lumex Opto/Components Inc. SSI-LXR3612ID-150		30 mcd	Diffused	2 V	LED	Round with Domed Top	Red	3 mm	T-1	635 nm	Round	Red	60 °	DC	30 mA
Lumex Opto/Components Inc. SSI-LXR3612USBD150		60 mcd	Diffused	3.5 V	LED	Round with Domed Top	Blue	3 mm	T-1		Round	Blue	60 °
Lumex Opto/Components Inc. SSI-LXR3612GD		30 mcd	Diffused	2.2 V	LED	Round with Domed Top	Green	3 mm	T-1	565 nm	Round	Green	60 °		25 mA	6.1 mm	0.24 in
Lumex Opto/Components Inc. SSI-LXR3612SID		100 mcd	Diffused	2.1 V	LED	Round with Domed Top	Red	3 mm	T-1	636 nm	Round	Red	60 °		30 mA	6.1 mm	0.24 in
Lumex Opto/Components Inc. SSI-LXR3612SOD-150		100 mcd	Diffused	2.1 V	LED	Round with Domed Top	Orange	3 mm	T-1	610 nm	Round	Orange	60 °
Lumex Opto/Components Inc. SSI-LXR3612SRD		65 mcd	Diffused	1.8 V	LED	Round with Domed Top	Red	3 mm	T-1	660 nm	Round	Red	60 °		30 mA	6.1 mm	0.24 in
Lumex Opto/Components Inc. SSI-LXR3612ID-300	Wire Leads - 12" (304.80mm)	30 mcd	Diffused	2 V	LED	Round with Domed Top	Red	3 mm	T-1	635 nm	Round	Red	60 °		30 mA	6.1 mm	0.24 in
Lumex Opto/Components Inc. SSI-LXR3612GD5V150		15 mcd	Diffused	5 V	LED	Round with Domed Top	Green	3 mm	T-1	565 nm	Round	Green	60 °		12 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Red Diffused 60° 2V 30mA Wire Leads - 6" (152.40mm)
