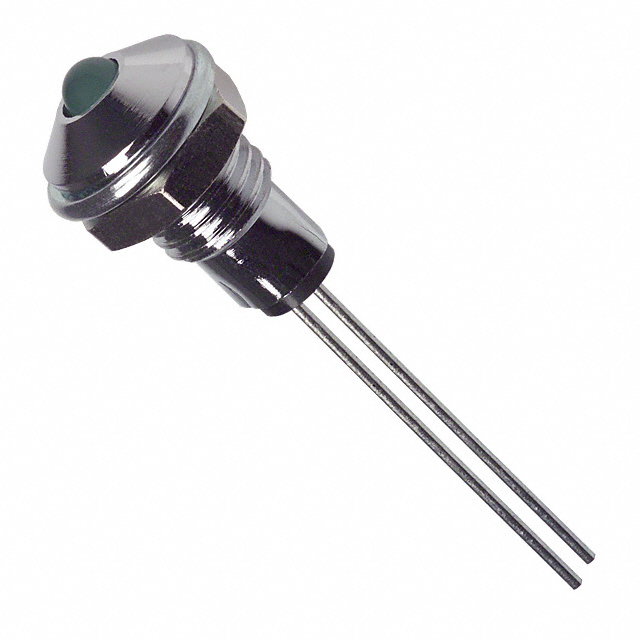

SSI-LXR3612GD
ActiveLumex Opto/Components Inc.
LED 3MM GREEN DIFF PANEL MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
SSI-LXR3612GD
ActiveLumex Opto/Components Inc.
LED 3MM GREEN DIFF PANEL MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SSI-LXR3612GD |
|---|---|
| Current | 25 mA |
| Lamp Color | Green |
| Lens Color | Green |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 30 mcd |
| Panel Cutout Dimensions | 6.1 mm |
| Panel Cutout Dimensions | 0.24 in |
| Panel Cutout Shape | Round |
| Type | LED |
| Viewing Angle | 60 ° |
| Voltage | 2.2 V |
| Wavelength - Peak | 565 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.90 | |
| 10 | $ 1.92 | |||
| 100 | $ 1.42 | |||
| 500 | $ 1.22 | |||
| 1000 | $ 1.16 | |||
| 2000 | $ 1.11 | |||
| 5000 | $ 1.06 | |||
Description
General part information
SSI-LXR3612 Series
LED Panel Indicator Green Diffused 60° 2.2V 25mA
Documents
Technical documentation and resources
No documents available
