19410240523

Active

HARTING Technology Group

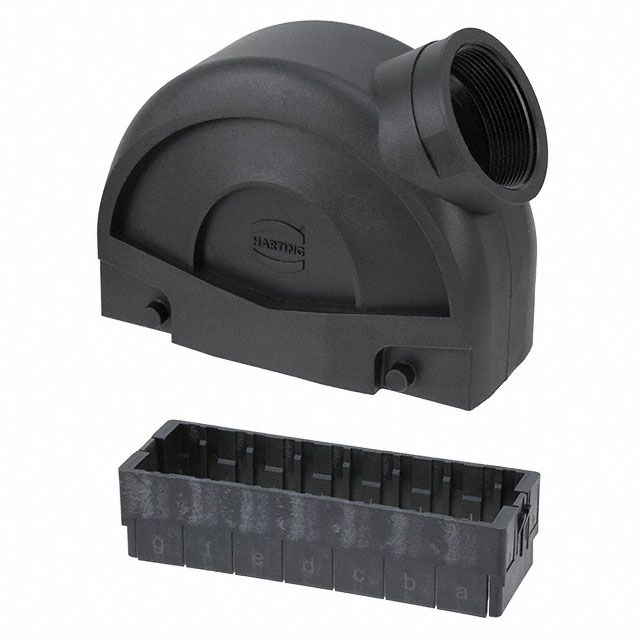

HAN-ECO MODULAR 24B HOOD SIDE ENTRY M40 W/O GLAND

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN-ECO MODULAR 24B HOOD SIDE ENTRY M40 W/O GLAND

Technical Specifications

Parameters and characteristics for this part

Specification	19410240523

Connector Type	Hood
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	121 mm
Size / Dimension [x]	4.764 "
Size / Dimension [y]	57 mm
Size / Dimension [y]	2.244 "
Size / Dimension [z]	88.9 mm
Size / Dimension [z]	3.5 "
Style	Side Entry

Part	Connector Type	Lock Location	Style	Housing Color	Ingress Protection	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Size	Housing Material	Features
HARTING Technology Group 19410240301	Base - Panel Mount	Locking Clip (2) on Base Bottom	Bottom Entry	Black	IP65 - Dust Tight Water Resistant	1.346 "	140 mm	57 mm	2.244 "	5.512 "	34.2 mm	125 °C	-40 °C	24 B	Polyamide (PA) Nylon Glass Filled
HARTING Technology Group 19410240233	Base - Box Mount	Locking Clip (2) on Base Bottom	Side Entry	Black	IP65 - Dust Tight Water Resistant	3.079 "	146 mm	68 mm	2.677 "	5.748 in	78.2 mm	125 °C	-40 °C	24 B	Polyamide (PA) Nylon Glass Filled
HARTING Technology Group 19410240273	Base - Box Mount	Locking Clip (2) on Base Bottom	Side Entry	Black	IP65 - Dust Tight Water Resistant	3.079 "	146 mm	68 mm	2.677 "	5.748 in	78.2 mm	125 °C	-40 °C	24 B	Polyamide (PA) Nylon Glass Filled	Feed Through
HARTING Technology Group 19410240523	Hood	Locking Clip (2) on Base Bottom	Side Entry	Black	IP65 - Dust Tight Water Resistant	3.5 "	121 mm	57 mm	2.244 "	4.764 "	88.9 mm	125 °C	-40 °C	24 B	Polyamide (PA) Nylon Glass Filled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry M40 24B IP65 - Dust Tight, Water Resistant
