19410240233

Active

HARTING Technology Group

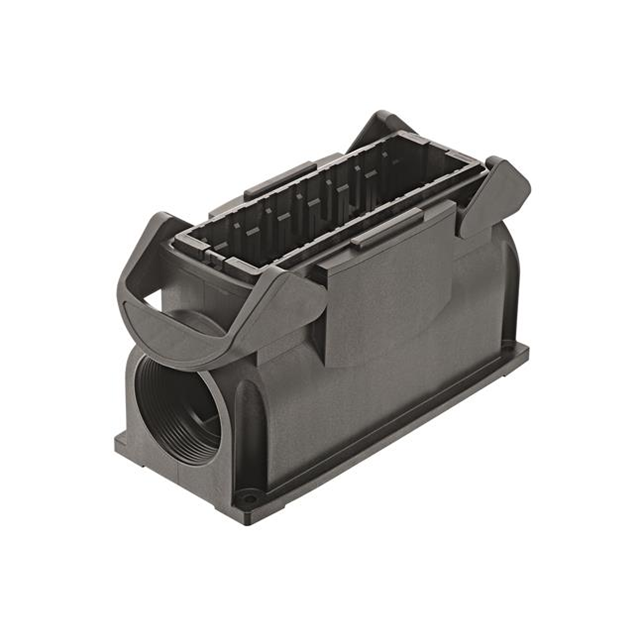

HAN-ECO MODULAR 24B SURFACE MOUNT HOUSING 1XM40 W/O GLAND

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN-ECO MODULAR 24B SURFACE MOUNT HOUSING 1XM40 W/O GLAND

Technical Specifications

Parameters and characteristics for this part

Specification	19410240233

Connector Type	Base - Box Mount
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	5.748 in
Size / Dimension [x]	146 mm
Size / Dimension [y]	2.677 "
Size / Dimension [y]	68 mm
Size / Dimension [z]	3.079 "
Size / Dimension [z]	78.2 mm
Style	Side Entry

Part	Connector Type	Lock Location	Style	Housing Color	Ingress Protection	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Size	Housing Material	Features
HARTING Technology Group 19410240301	Base - Panel Mount	Locking Clip (2) on Base Bottom	Bottom Entry	Black	IP65 - Dust Tight Water Resistant	1.346 "	140 mm	57 mm	2.244 "	5.512 "	34.2 mm	125 °C	-40 °C	24 B	Polyamide (PA) Nylon Glass Filled
HARTING Technology Group 19410240233	Base - Box Mount	Locking Clip (2) on Base Bottom	Side Entry	Black	IP65 - Dust Tight Water Resistant	3.079 "	146 mm	68 mm	2.677 "	5.748 in	78.2 mm	125 °C	-40 °C	24 B	Polyamide (PA) Nylon Glass Filled
HARTING Technology Group 19410240273	Base - Box Mount	Locking Clip (2) on Base Bottom	Side Entry	Black	IP65 - Dust Tight Water Resistant	3.079 "	146 mm	68 mm	2.677 "	5.748 in	78.2 mm	125 °C	-40 °C	24 B	Polyamide (PA) Nylon Glass Filled	Feed Through
HARTING Technology Group 19410240523	Hood	Locking Clip (2) on Base Bottom	Side Entry	Black	IP65 - Dust Tight Water Resistant	3.5 "	121 mm	57 mm	2.244 "	4.764 "	88.9 mm	125 °C	-40 °C	24 B	Polyamide (PA) Nylon Glass Filled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Box Mount Connector Side Entry M40 24B IP65 - Dust Tight, Water Resistant
