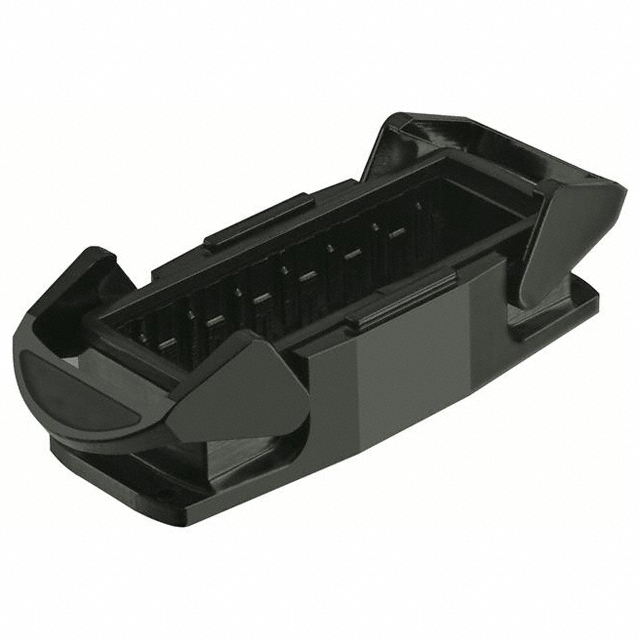

19410240301 - MFG_19410240301

19410240301

Active
HARTING Technology Group

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, NYLON (POLYAMIDE), FIBREGLASS REINFORCED, 2 LEVER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet19410240301 Prod Declaration Cert+2
19410240301 - MFG_19410240301

19410240301

Active
HARTING Technology Group

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, NYLON (POLYAMIDE), FIBREGLASS REINFORCED, 2 LEVER

Deep-Dive with AI

DocumentsDatasheet19410240301 Prod Declaration Cert+2

Technical Specifications

Parameters and characteristics for this part

Specification19410240301
Connector TypeBase - Panel Mount
Housing ColorBlack
Housing MaterialPolyamide (PA), Nylon, Glass Filled
Ingress ProtectionIP65 - Dust Tight, Water Resistant
Lock LocationLocking Clip (2) on Base Bottom
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Size24 B
Size / Dimension [x]140 mm
Size / Dimension [x]5.512 "
Size / Dimension [y]57 mm
Size / Dimension [y]2.244 "
Size / Dimension [z]1.346 "
Size / Dimension [z]34.2 mm
StyleBottom Entry

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 30.29
10$ 22.26
25$ 19.96
50$ 18.47
100$ 17.16
250$ 15.67
500$ 14.70
NewarkEach 1$ 22.65
5$ 22.09
10$ 21.53
25$ 20.48
50$ 19.25
100$ 15.41

Description

General part information

19410240 Series

Base - Panel Mount Connector Bottom Entry 24B IP65 - Dust Tight, Water Resistant
