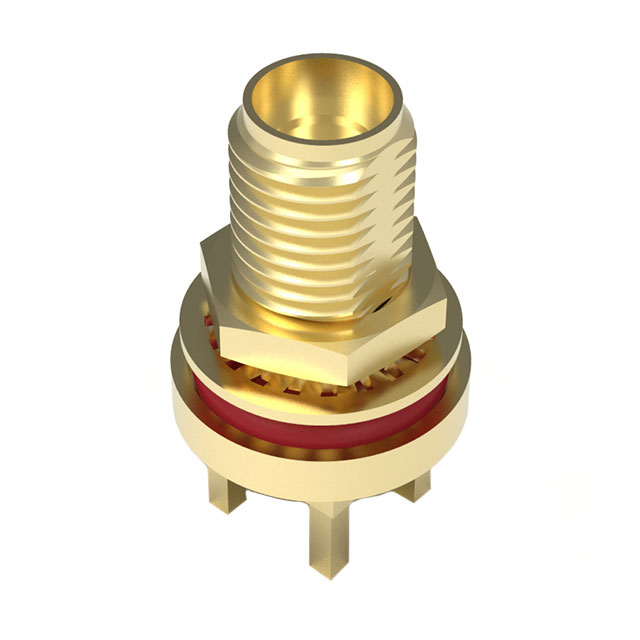

RFPC-SMA16-FN

Active

GCT

SMA PCB MOUNT STRAIGHT BULKHEAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEES Brochure Datasheet

RFPC-SMA16-FN

Active

GCT

SMA PCB MOUNT STRAIGHT BULKHEAD

Deep-Dive with AI

DocumentsEES Brochure Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RFPC-SMA16-FN

Body Finish	Gold
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	IP Rated Unmated
Frequency - Max [Max]	3 GHz
Housing Color	Gold
Includes	1 Nut, 1 Connector, 1 Lockwasher
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Shield Termination	Solder

RFPC-SMA Series

Part	Dielectric Material	Body Material	Impedance	Center Contact Material	Frequency - Max [Max]	Contact Termination	Center Contact Plating	Connector Style	Housing Color	Mounting Type	Shield Termination	Body Finish	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Ingress Protection	Includes	Mounting Feature	Features
GCT RFPC-SMA27-F	Polytetrafluoroethylene (PTFE)	Brass	50 Ohms	Brass	6000 MHz	Solder	Gold	SMA	Gold	Through Hole Right Angle	Solder	Gold	Female Socket Jack	-55 °C	125 °C	1
GCT RFPC-SMA17-FN-A	Polytetrafluoroethylene (PTFE)	Brass		Brass	3 GHz	Solder	Gold	RP-SMA	Gold	Panel Mount Through Hole	Solder	Gold	Jack Male Pin	-55 °C	155 °C	1	IP67/IP68 - Dust Tight Waterproof	1 Connector 1 Lockwasher 1 Nut	Bulkhead - Front Side Nut	IP Rated Unmated
GCT RFPC-SMA22-FN-A-E	Polytetrafluoroethylene (PTFE)	Stainless Steel	50 Ohms	Beryllium Copper	6000 MHz	Solder	Gold	SMA		Through Hole Right Angle	Solder		Female Socket Jack	-55 °C	155 °C	1	IP68 IP69K		Bulkhead - Front Side Nut	IP Rated Unmated Stainless Steel 303
GCT RFPC-SMA30-F	Polytetrafluoroethylene (PTFE)	Brass	50 Ohms	Brass	6000 MHz	Solder	Gold	RP-SMA	Gold	Through Hole Right Angle	Solder	Gold	Jack Male Pin	-55 °C	125 °C	1
GCT RFPC-SMA29-F	Polytetrafluoroethylene (PTFE)	Brass	50 Ohms	Brass	6000 MHz	Solder	Gold	RP-SMA	Gold	Through Hole	Solder	Gold	Jack Male Pin	-55 °C	125 °C	1
GCT RFPC-SMA16-FN	Polytetrafluoroethylene (PTFE)	Brass		Phosphor Bronze	3 GHz	Solder	Gold	SMA	Gold	Panel Mount Through Hole	Solder	Gold	Female Socket Jack			1	IP67/IP68 - Dust Tight Waterproof	1 Connector 1 Lockwasher 1 Nut	Bulkhead - Front Side Nut	IP Rated Unmated
GCT RFPC-SMA14-FN-A	Polytetrafluoroethylene (PTFE)	Brass		Beryllium Copper Brass	6000 MHz	Solder	Gold	SMA	Gold	Panel Mount Right Angle Through Hole	Solder	Gold	Female Socket Jack	-55 °C	155 °C	1	IP67/IP68 - Dust Tight Waterproof	1 Connector 1 Lockwasher 1 Nut	Bulkhead - Front Side Nut	IP Rated Unmated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	560	$ 10.81

Description

General part information

RFPC-SMA Series

SMA Connector Jack, Female Socket Panel Mount, Through Hole Solder
