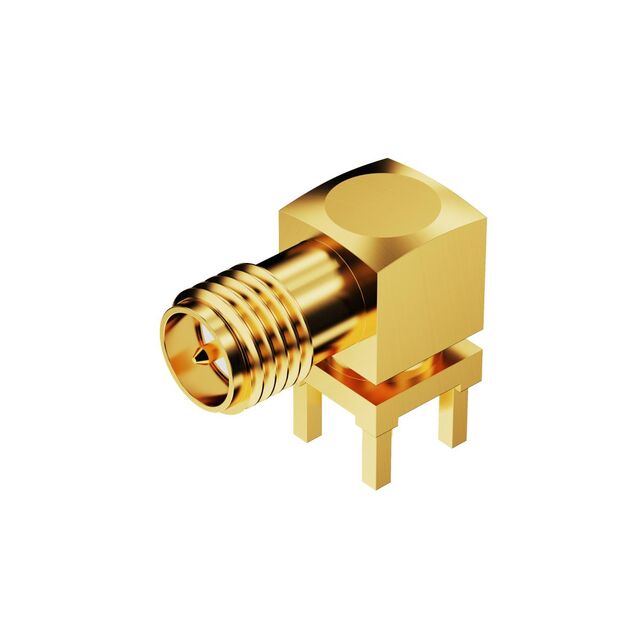

RFPC-SMA30-F
ActiveGCT
SMA RP PCB MOUNT RA JACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RFPC-SMA30-F
ActiveGCT
SMA RP PCB MOUNT RA JACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RFPC-SMA30-F |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | RP-SMA |
| Connector Type | Male Pin, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.51 | |
| 10 | $ 2.18 | |||
| 25 | $ 2.09 | |||
| 40 | $ 2.04 | |||
| 100 | $ 1.95 | |||
| 300 | $ 1.77 | |||
| 500 | $ 1.63 | |||
| 1000 | $ 1.39 | |||
| 2400 | $ 1.30 | |||
Description
General part information
RFPC-SMA Series
RP-SMA Connector Jack, Male Pin 50 Ohms Through Hole, Right Angle Solder
