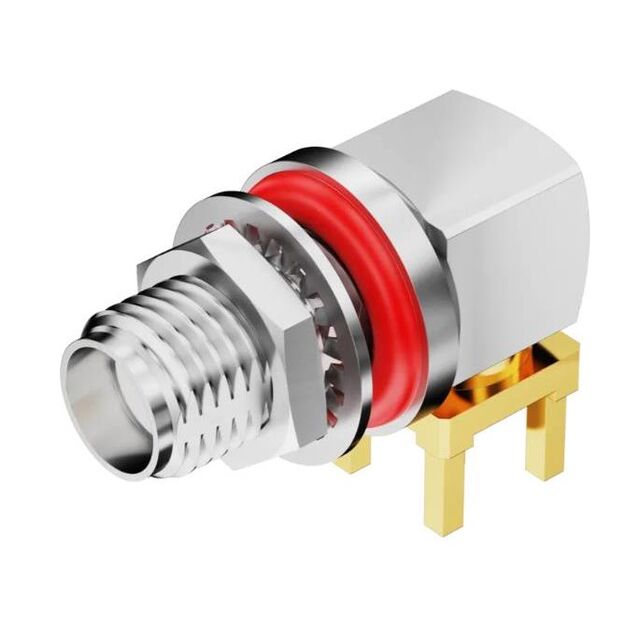

RFPC-SMA22-FN-A-E

Active

GCT

SMA, STAINLESS STEEL PCB MOUNT R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RFPC-SMA22-FN-A-E

Active

GCT

SMA, STAINLESS STEEL PCB MOUNT R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RFPC-SMA22-FN-A-E

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Stainless Steel 303, IP Rated Unmated
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Ingress Protection	IP68, IP69K
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder

RFPC-SMA Series

Part	Dielectric Material	Body Material	Impedance	Center Contact Material	Frequency - Max [Max]	Contact Termination	Center Contact Plating	Connector Style	Housing Color	Mounting Type	Shield Termination	Body Finish	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Ingress Protection	Includes	Mounting Feature	Features
GCT RFPC-SMA27-F	Polytetrafluoroethylene (PTFE)	Brass	50 Ohms	Brass	6000 MHz	Solder	Gold	SMA	Gold	Through Hole Right Angle	Solder	Gold	Female Socket Jack	-55 °C	125 °C	1
GCT RFPC-SMA17-FN-A	Polytetrafluoroethylene (PTFE)	Brass		Brass	3 GHz	Solder	Gold	RP-SMA	Gold	Panel Mount Through Hole	Solder	Gold	Jack Male Pin	-55 °C	155 °C	1	IP67/IP68 - Dust Tight Waterproof	1 Connector 1 Lockwasher 1 Nut	Bulkhead - Front Side Nut	IP Rated Unmated
GCT RFPC-SMA22-FN-A-E	Polytetrafluoroethylene (PTFE)	Stainless Steel	50 Ohms	Beryllium Copper	6000 MHz	Solder	Gold	SMA		Through Hole Right Angle	Solder		Female Socket Jack	-55 °C	155 °C	1	IP68 IP69K		Bulkhead - Front Side Nut	IP Rated Unmated Stainless Steel 303
GCT RFPC-SMA30-F	Polytetrafluoroethylene (PTFE)	Brass	50 Ohms	Brass	6000 MHz	Solder	Gold	RP-SMA	Gold	Through Hole Right Angle	Solder	Gold	Jack Male Pin	-55 °C	125 °C	1
GCT RFPC-SMA29-F	Polytetrafluoroethylene (PTFE)	Brass	50 Ohms	Brass	6000 MHz	Solder	Gold	RP-SMA	Gold	Through Hole	Solder	Gold	Jack Male Pin	-55 °C	125 °C	1
GCT RFPC-SMA16-FN	Polytetrafluoroethylene (PTFE)	Brass		Phosphor Bronze	3 GHz	Solder	Gold	SMA	Gold	Panel Mount Through Hole	Solder	Gold	Female Socket Jack			1	IP67/IP68 - Dust Tight Waterproof	1 Connector 1 Lockwasher 1 Nut	Bulkhead - Front Side Nut	IP Rated Unmated
GCT RFPC-SMA14-FN-A	Polytetrafluoroethylene (PTFE)	Brass		Beryllium Copper Brass	6000 MHz	Solder	Gold	SMA	Gold	Panel Mount Right Angle Through Hole	Solder	Gold	Female Socket Jack	-55 °C	155 °C	1	IP67/IP68 - Dust Tight Waterproof	1 Connector 1 Lockwasher 1 Nut	Bulkhead - Front Side Nut	IP Rated Unmated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 23.77
		10	$ 20.81
		25	$ 19.91
		40	$ 19.27
		120	$ 18.63
		240	$ 17.60
		480	$ 17.09

Description

General part information

RFPC-SMA Series

SMA Connector Jack, Female Socket 50 Ohms Through Hole, Right Angle Solder
