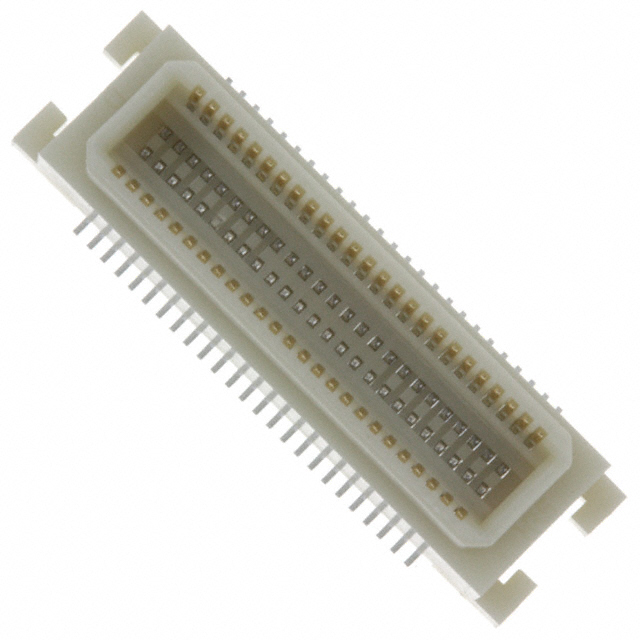

DF17A(4.0)-50DP-0.5V(57)
ActiveHirose Electric USA, Inc.
CONN HDR 50POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DF17A(4.0)-50DP-0.5V(57)
ActiveHirose Electric USA, Inc.
CONN HDR 50POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DF17A(4.0)-50DP-0.5V(57) |
|---|---|
| Connector Type | Header, Outer Shroud Contacts |
| Contact Finish | Gold |
| Features | Board Guide |
| Height Above Board [z] | 0.248 " |
| Height Above Board [z] | 6.3 mm |
| Mated Stacking Heights | 7 mm, 8 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.14 | |
| 10 | $ 2.56 | |||
| 100 | $ 2.08 | |||
| 500 | $ 1.81 | |||
| Digi-Reel® | 1 | $ 3.33 | ||
| 10 | $ 3.03 | |||
| 100 | $ 2.67 | |||
| 500 | $ 2.27 | |||
| Tape & Reel (TR) | 1000 | $ 1.93 | ||
| 2000 | $ 1.83 | |||
| 3000 | $ 1.78 | |||
| 5000 | $ 1.72 | |||
Description
General part information
DF17A(4.0) Series
50 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
