DF17A(4.0)-20DP-0.5V(51)

Obsolete

Hirose Electric USA, Inc.

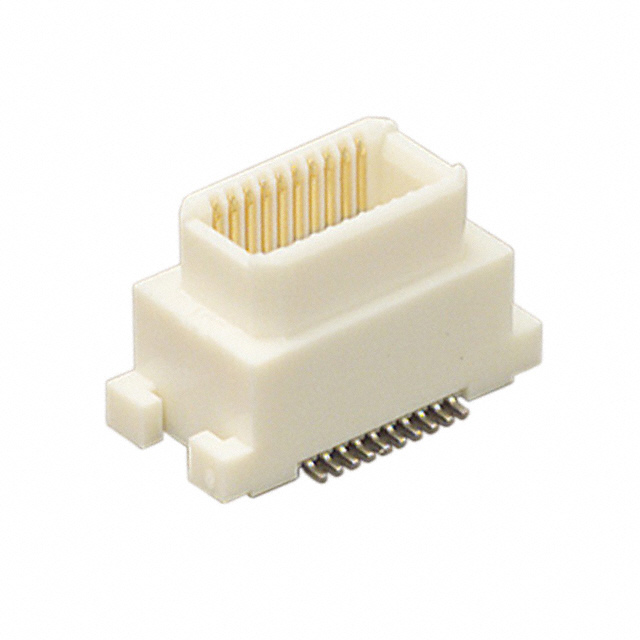

CONN HDR 20POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN HDR 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF17A(4.0)-20DP-0.5V(51)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Board Guide
Height Above Board [z]	0.248 "
Height Above Board [z]	6.3 mm
Mated Stacking Heights	7 mm, 8 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Pitch [x]	Pitch [x]	Contact Finish	Number of Rows	Mounting Type	Features	Height Above Board [z]	Height Above Board [z]	Number of Positions	Connector Type	Mated Stacking Heights
Hirose Electric USA, Inc. DF17A(4.0)-20DP-0.5V(51)	0.5 mm	0.02 in	Gold	2	Surface Mount	Board Guide	0.248 "	6.3 mm	20	Header Outer Shroud Contacts	7 mm 8 mm
Hirose Electric USA, Inc. DF17A(4.0)-60DP-0.5V(57)	0.5 mm	0.02 in	Gold	2	Surface Mount	Board Guide	0.248 "	6.3 mm	60	Header Outer Shroud Contacts	7 mm 8 mm
Hirose Electric USA, Inc. DF17A(4.0)-50DP-0.5V(57)	0.5 mm	0.02 in	Gold	2	Surface Mount	Board Guide	0.248 "	6.3 mm	50	Header Outer Shroud Contacts	7 mm 8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

20 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
