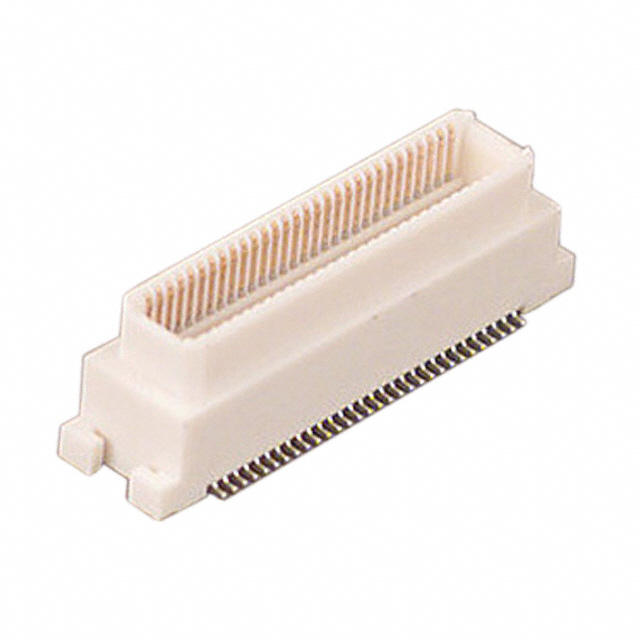

DF17A(4.0)-60DP-0.5V(57)
ActiveBOARD-TO-BOARD STACKING HEIGHT OF 5-8MM, TWO-PIECE CONNECTOR; HRS NO: 683-0136-9 57; NO. OF POSITIONS: 60; CONNECTOR TYPE: BOARD MOUNTING; CONTACT GENDER: MALE; CONTACT SPACING (MM): 0.5; TERMINAL PITCH (MM): 0.5; STACK HEIGHT (MM): 7.00,8.00; PCB MOUNT TYPE: SMT; CURRENT RATING(AMPS)(MAX.): 0.3; CONTACT MATING AREA PLATING: GOLD; OPERATING TEMPERATURE RANGE (DEGREES C): -35 TO 85; GENERAL DESCRIPTION: HEADER; STRAIGHT; NO METAL HOLDDOWN; LOCATING BOSS; SPECIFIED PACKAGING; CHANGED FINISH
Deep-Dive with AI
Search across all available documentation for this part.
DF17A(4.0)-60DP-0.5V(57)
ActiveBOARD-TO-BOARD STACKING HEIGHT OF 5-8MM, TWO-PIECE CONNECTOR; HRS NO: 683-0136-9 57; NO. OF POSITIONS: 60; CONNECTOR TYPE: BOARD MOUNTING; CONTACT GENDER: MALE; CONTACT SPACING (MM): 0.5; TERMINAL PITCH (MM): 0.5; STACK HEIGHT (MM): 7.00,8.00; PCB MOUNT TYPE: SMT; CURRENT RATING(AMPS)(MAX.): 0.3; CONTACT MATING AREA PLATING: GOLD; OPERATING TEMPERATURE RANGE (DEGREES C): -35 TO 85; GENERAL DESCRIPTION: HEADER; STRAIGHT; NO METAL HOLDDOWN; LOCATING BOSS; SPECIFIED PACKAGING; CHANGED FINISH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DF17A(4.0)-60DP-0.5V(57) |
|---|---|
| Connector Type | Header, Outer Shroud Contacts |
| Contact Finish | Gold |
| Features | Board Guide |
| Height Above Board [z] | 0.248 " |
| Height Above Board [z] | 6.3 mm |
| Mated Stacking Heights | 7 mm, 8 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 1.82 | |
Description
General part information
DF17A(4.0) Series
60 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
