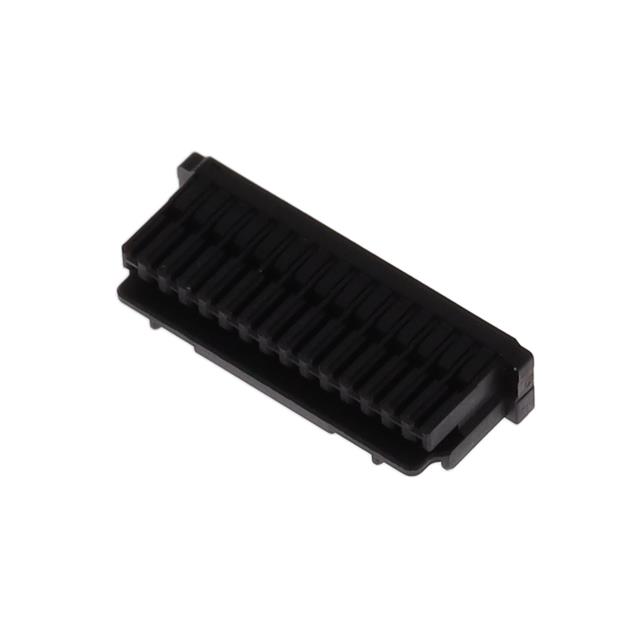

KW30-15P-1C(800)

Active

Hirose Electric USA, Inc.

CONN PLUG HSG 15POS 1.00MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

KW30-15P-1C(800)

Active

Hirose Electric USA, Inc.

CONN PLUG HSG 15POS 1.00MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KW30-15P-1C(800)

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	15
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm

KW30 Series

Part	Mated Stacking Heights	Contact Material	Shrouding	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Insulation Color	Voltage Rating	Number of Positions Loaded	Connector Type	Number of Rows	Features	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Contact Finish - Mating	Termination	Mounting Type	Style	Insulation Material	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Number of Positions	Note	Pitch [x]	Pitch [x]	Color	Contact Termination	Contact Finish Thickness	Contact Finish Thickness	Pin or Socket	Type	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish
Hirose Electric USA, Inc. KW30-3S-1V(800)	17.5 mm	Copper Alloy	Shrouded - 4 Wall	Gold	0.203 Ám	8 Áin	Latch Lock	Black	100 VAC	All	Header	1	Pick and Place Solder Retention	Male Pin	2 µin	0.051 µm	5.69 mm	0.224 in	Gold	Solder	Surface Mount	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	UL94 V-0	105 ░C	-55 °C	0.039 in	1 mm
Hirose Electric USA, Inc. KW30-10S-1V(800)	17.5 mm	Copper Alloy	Shrouded - 4 Wall	Gold	0.203 Ám	8 Áin	Latch Lock	Black	100 VAC	All	Header	1	Pick and Place Solder Retention	Male Pin	2 µin	0.051 µm	5.69 mm	0.224 in	Gold	Solder	Surface Mount	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	UL94 V-0	105 ░C	-55 °C	0.039 in	1 mm	10
Hirose Electric USA, Inc. KW30-6S-1H(800)		Copper Alloy	Shrouded - 4 Wall	Gold	0.203 Ám	8 Áin	Latch Lock	Black	100 VAC	All	Header	1	Pick and Place Solder Retention	Male Pin	2 µin	0.051 µm	3.96 mm	0.156 in	Gold	Solder	Surface Mount Right Angle	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	UL94 V-0	105 ░C	-55 °C	0.039 in	1 mm	6
Hirose Electric USA, Inc. KW30-2S-2H(800)		Copper Alloy	Shrouded - 4 Wall	Gold	0.203 Ám	8 Áin	Latch Lock	Black	100 VAC	All	Header	1	Pick and Place Solder Retention	Male Pin	2 µin	0.051 µm	3.96 mm	0.156 in	Gold	Solder	Surface Mount Right Angle	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	UL94 V-0	105 ░C	-55 °C	0.039 in	1 mm	2
Hirose Electric USA, Inc. KW30-10P-1C(800)							Latch Holder				Plug	1		Female Socket							Free Hanging (In-Line)		Polyamide (PA66) Nylon 6/6			105 ░C	-55 °C			10	Contacts Not Included	0.039 in	1 mm	Black	Crimp
Hirose Electric USA, Inc. KW30-15S-1H(800)		Copper Alloy	Shrouded - 4 Wall	Gold	0.203 Ám	8 Áin	Latch Lock	Black	100 VAC	All	Header	1	Pick and Place Solder Retention	Male Pin	2 µin	0.051 µm	3.96 mm	0.156 in	Gold	Solder	Surface Mount Right Angle	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	UL94 V-0	105 ░C	-55 °C	0.039 in	1 mm	15
Hirose Electric USA, Inc. KW30-15P-1C(800)							Latch Holder				Plug	1		Female Socket							Free Hanging (In-Line)		Polyamide (PA66) Nylon 6/6			105 ░C	-55 °C			15	Contacts Not Included	0.039 in	1 mm	Black	Crimp
Hirose Electric USA, Inc. KW30-8S-1H(800)		Copper Alloy	Shrouded - 4 Wall	Gold	0.203 Ám	8 Áin	Latch Lock	Black	100 VAC	All	Header	1	Pick and Place Solder Retention	Male Pin	2 µin	0.051 µm	3.96 mm	0.156 in	Gold	Solder	Surface Mount Right Angle	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	UL94 V-0	105 ░C	-55 °C	0.039 in	1 mm	8
Hirose Electric USA, Inc. KW30-2830PCFA(800)																																			Crimp	7.87 µin	0.2 µm	Socket	Stamped	30 AWG	27.5 AWG	Gold
Hirose Electric USA, Inc. KW30-6S-1V(800)	17.5 mm	Copper Alloy	Shrouded - 4 Wall	Gold	0.203 Ám	8 Áin	Latch Lock	Black	100 VAC	All	Header	1	Pick and Place Solder Retention	Male Pin	2 µin	0.051 µm	5.69 mm	0.224 in	Gold	Solder	Surface Mount	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	UL94 V-0	105 ░C	-55 °C	0.039 in	1 mm	6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.54
		10	$ 0.45
		25	$ 0.43
		50	$ 0.42
		100	$ 0.41
		250	$ 0.37
		500	$ 0.33
		1000	$ 0.33

Description

General part information

KW30 Series

15 Rectangular Connectors - Housings Plug Black 0.039" (1.00mm)
