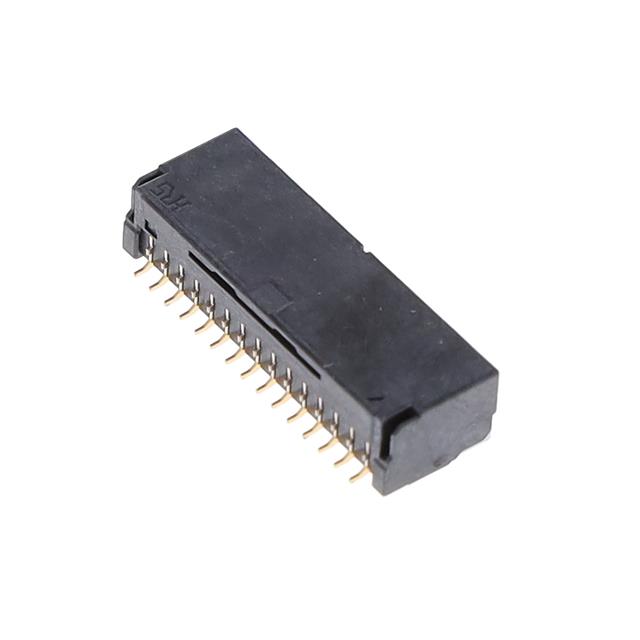

KW30-15S-1H(800)

Active

Hirose Electric USA, Inc.

CONN HEADER, RT ANGLE, 1MM PITCH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

KW30-15S-1H(800)

Active

Hirose Electric USA, Inc.

CONN HEADER, RT ANGLE, 1MM PITCH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KW30-15S-1H(800)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	2 µin
Contact Finish Thickness - Post	0.051 µm
Contact Material	Copper Alloy
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Latch Lock
Features	Pick and Place, Solder Retention
Insulation Color	Black
Insulation Height	0.156 in
Insulation Height	3.96 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	15
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 VAC

KW30 Series

Part	Mated Stacking Heights	Contact Material	Shrouding	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Insulation Color	Voltage Rating	Number of Positions Loaded	Connector Type	Number of Rows	Features	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Contact Finish - Mating	Termination	Mounting Type	Style	Insulation Material	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Number of Positions	Note	Pitch [x]	Pitch [x]	Color	Contact Termination	Contact Finish Thickness	Contact Finish Thickness	Pin or Socket	Type	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish
Hirose Electric USA, Inc. KW30-3S-1V(800)	17.5 mm	Copper Alloy	Shrouded - 4 Wall	Gold	0.203 Ám	8 Áin	Latch Lock	Black	100 VAC	All	Header	1	Pick and Place Solder Retention	Male Pin	2 µin	0.051 µm	5.69 mm	0.224 in	Gold	Solder	Surface Mount	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	UL94 V-0	105 ░C	-55 °C	0.039 in	1 mm
Hirose Electric USA, Inc. KW30-10S-1V(800)	17.5 mm	Copper Alloy	Shrouded - 4 Wall	Gold	0.203 Ám	8 Áin	Latch Lock	Black	100 VAC	All	Header	1	Pick and Place Solder Retention	Male Pin	2 µin	0.051 µm	5.69 mm	0.224 in	Gold	Solder	Surface Mount	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	UL94 V-0	105 ░C	-55 °C	0.039 in	1 mm	10
Hirose Electric USA, Inc. KW30-6S-1H(800)		Copper Alloy	Shrouded - 4 Wall	Gold	0.203 Ám	8 Áin	Latch Lock	Black	100 VAC	All	Header	1	Pick and Place Solder Retention	Male Pin	2 µin	0.051 µm	3.96 mm	0.156 in	Gold	Solder	Surface Mount Right Angle	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	UL94 V-0	105 ░C	-55 °C	0.039 in	1 mm	6
Hirose Electric USA, Inc. KW30-2S-2H(800)		Copper Alloy	Shrouded - 4 Wall	Gold	0.203 Ám	8 Áin	Latch Lock	Black	100 VAC	All	Header	1	Pick and Place Solder Retention	Male Pin	2 µin	0.051 µm	3.96 mm	0.156 in	Gold	Solder	Surface Mount Right Angle	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	UL94 V-0	105 ░C	-55 °C	0.039 in	1 mm	2
Hirose Electric USA, Inc. KW30-10P-1C(800)							Latch Holder				Plug	1		Female Socket							Free Hanging (In-Line)		Polyamide (PA66) Nylon 6/6			105 ░C	-55 °C			10	Contacts Not Included	0.039 in	1 mm	Black	Crimp
Hirose Electric USA, Inc. KW30-15S-1H(800)		Copper Alloy	Shrouded - 4 Wall	Gold	0.203 Ám	8 Áin	Latch Lock	Black	100 VAC	All	Header	1	Pick and Place Solder Retention	Male Pin	2 µin	0.051 µm	3.96 mm	0.156 in	Gold	Solder	Surface Mount Right Angle	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	UL94 V-0	105 ░C	-55 °C	0.039 in	1 mm	15
Hirose Electric USA, Inc. KW30-15P-1C(800)							Latch Holder				Plug	1		Female Socket							Free Hanging (In-Line)		Polyamide (PA66) Nylon 6/6			105 ░C	-55 °C			15	Contacts Not Included	0.039 in	1 mm	Black	Crimp
Hirose Electric USA, Inc. KW30-8S-1H(800)		Copper Alloy	Shrouded - 4 Wall	Gold	0.203 Ám	8 Áin	Latch Lock	Black	100 VAC	All	Header	1	Pick and Place Solder Retention	Male Pin	2 µin	0.051 µm	3.96 mm	0.156 in	Gold	Solder	Surface Mount Right Angle	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	UL94 V-0	105 ░C	-55 °C	0.039 in	1 mm	8
Hirose Electric USA, Inc. KW30-2830PCFA(800)																																			Crimp	7.87 µin	0.2 µm	Socket	Stamped	30 AWG	27.5 AWG	Gold
Hirose Electric USA, Inc. KW30-6S-1V(800)	17.5 mm	Copper Alloy	Shrouded - 4 Wall	Gold	0.203 Ám	8 Áin	Latch Lock	Black	100 VAC	All	Header	1	Pick and Place Solder Retention	Male Pin	2 µin	0.051 µm	5.69 mm	0.224 in	Gold	Solder	Surface Mount	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	UL94 V-0	105 ░C	-55 °C	0.039 in	1 mm	6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.72
		10	$ 1.50
		100	$ 1.34
		500	$ 1.11
	Tape & Reel (TR)	1500	$ 0.94
		3000	$ 0.87
		4500	$ 0.84
		7500	$ 0.80
		10500	$ 0.79

Description

General part information

KW30 Series

Connector Header Surface Mount, Right Angle 15 position 0.039" (1.00mm)
